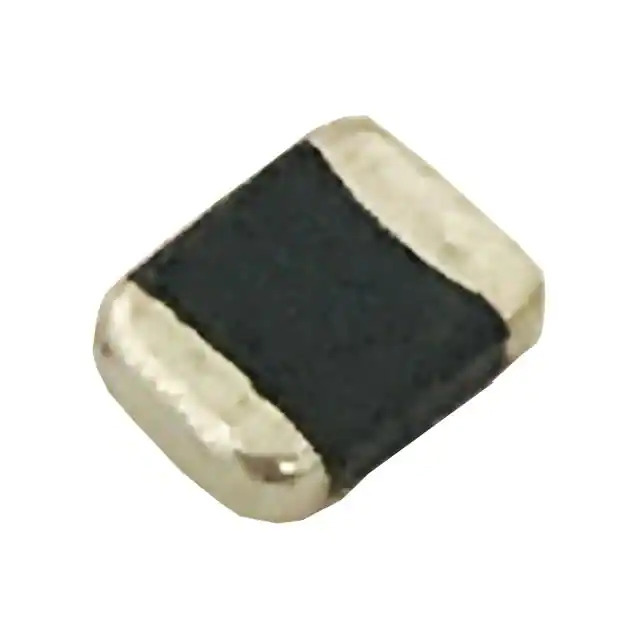

BDHE00252012R24MQ1

Name: BDHE00252012R24MQ1
Brand: Chilisin
SKU: 1370469
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	BDHE00252012R24MQ1
Manufacturer	Chilisin
Catalog	Fixed Inductors
Description	INDUCTOR POWER
Datasheet	BDHE00252012R24MQ1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Chilisin Electronics
Series	BDHE
Package	Tape & Reel
Product Status	Active
Type	Molded
Material - Core	-
Inductance	240 nH
Tolerance	±20%
Current Rating (Amps)	6.2 A
Current - Saturation (Isat)	9A
Shielding	Unshielded
DC Resistance (DCR)	15mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	2 MHz
Features	-
Mounting Type	Surface Mount
Package / Case	1008 (2520 Metric)
Supplier Device Package	1008
Size / Dimension	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max)	0.047" (1.20mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1370469-BDHE00252012R24MQ1
Ultra Librarian 3D Model	Ultra Librarian BDHE00252012R24MQ1 CAD Model

Alternative Products

Description

The Chilisin Electronics BDHE series is a surface mount fixed inductor with a package/case size of 1008 (2520 metric).

Package / Case: 1008 (2520 Metric)
Size: 0.098" L x 0.079" W (2.50mm x 2.00mm)
Seated Height: 0.047" (1.20mm)
Inductance: 240nH
Current Rating: 6.2A
Mounting Type: Surface Mount
DC Resistance: 15mOhm max
Shielding: Unshielded
Current Saturation: 9A
RoHS Compliant: Yes
REACH Status: Unaffected
Product Status: Active
