DMN1019UFDE-7 - N-Channel Enhancement Mode Field Effect Transistor by Diodes Incorporated

The DMN1019UFDE-7 is a high-performance N-Channel enhancement mode Field Effect Transistor (FET) designed and manufactured by Diodes Incorporated, a leading company in the semiconductor market. This MOSFET is engineered to provide efficient power control and management in a compact package, making it an ideal choice for a wide range of applications, including power management, load switching, and conversion systems.

This particular FET is part of Diodes Incorporated's extensive range of MOSFETs that are known for their reliability and performance. The DMN1019UFDE-7 offers a drain-source voltage (V_DS) of 12V, which is suitable for low-voltage applications, and it supports continuous drain current (I_D) up to 6.5A, providing sufficient current handling capability for most small to medium power requirements.

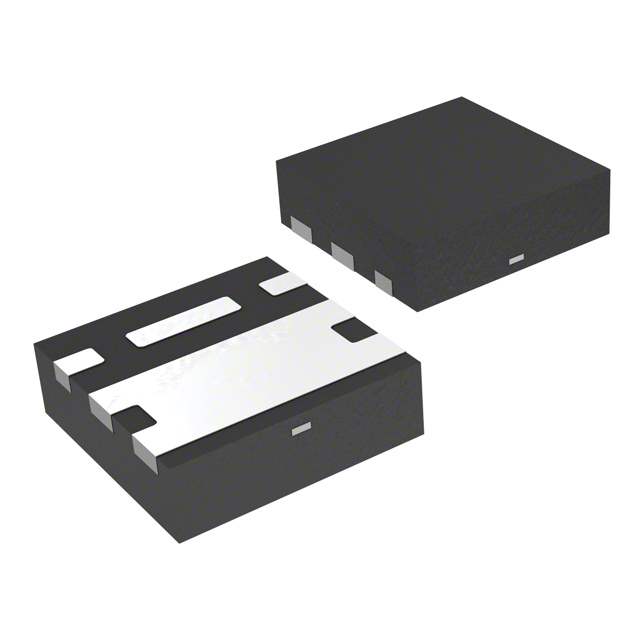

The device comes in an ultra-small DFN2020 package, with a footprint of just 2mm x 2mm, making it an excellent choice for space-constrained designs. Despite its small size, it does not compromise on thermal performance, thanks to its power dissipation of 1.25W, which helps to maintain operational stability under various conditions.

The DMN1019UFDE-7 features low on-resistance (R_DS(on)), which enhances its efficiency by minimizing conduction losses. This characteristic is particularly beneficial in applications where energy efficiency is paramount. Additionally, the low threshold voltage ensures that the device can be driven at lower gate voltages, further improving its versatility in different circuit designs.

With its fast switching speed and robust thermal performance, the DMN1019UFDE-7 is well-suited for high-speed switching applications. It is also characterized by its low gate charge (Q_G), which contributes to reduced switching losses and enhances overall system efficiency.

Designed with a focus on reliability, the DMN1019UFDE-7 features built-in electrostatic discharge (ESD) protection, safeguarding the device from unexpected voltage spikes during handling and operation. This MOSFET is RoHS compliant and halogen-free, reflecting Diodes Incorporated's commitment to environmental sustainability.

In summary, the DMN1019UFDE-7 from Diodes Incorporated is a versatile and efficient solution for designers looking to optimize their power management systems with a reliable and compact N-Channel MOSFET.
