Product Overview: DMP2305U-7 – A High-Performance P-Channel MOSFET

The DMP2305U-7 is a cutting-edge P-Channel enhancement mode MOSFET produced by Diodes Incorporated, a leader in high-quality semiconductor products. This MOSFET is designed to offer efficient power management and is ideal for a wide array of applications, including load switch, power management, and other battery-operated systems.

Key Features

• Low On-Resistance: The DMP2305U-7 boasts an exceptionally low on-resistance (R<sub>DS(on)), which translates to reduced losses and improved power efficiency.
• High Power Dissipation: With a power dissipation of 1.4W, this MOSFET can handle significant power, making it suitable for demanding applications.

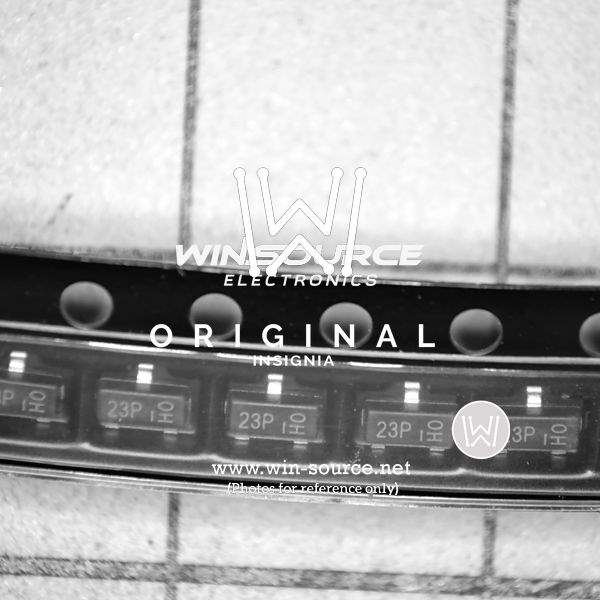

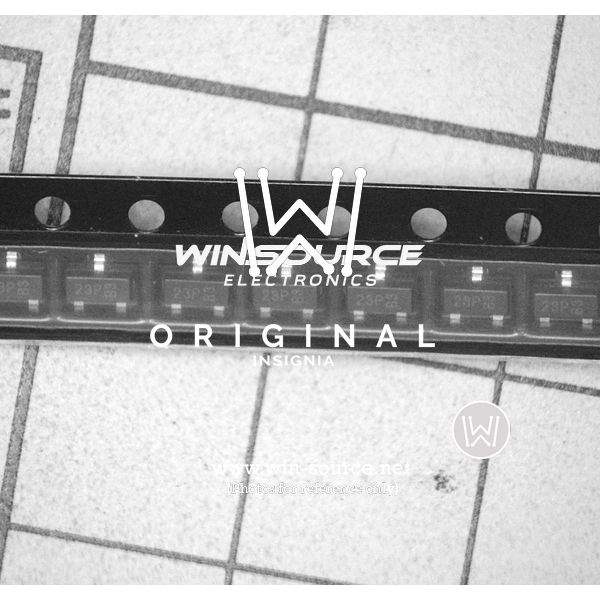

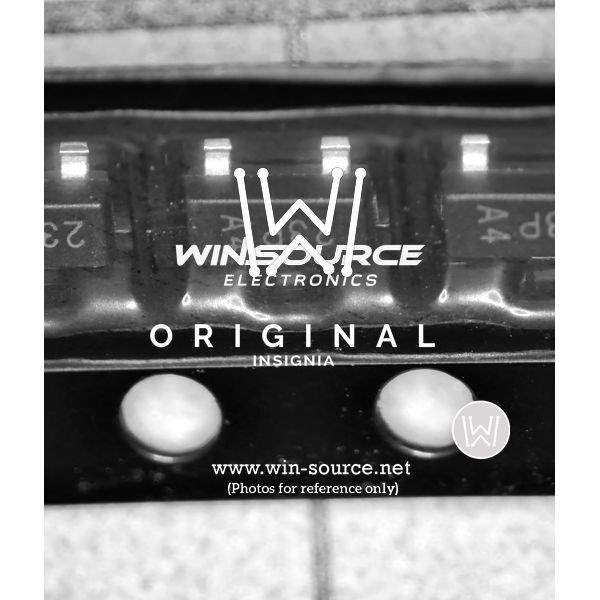

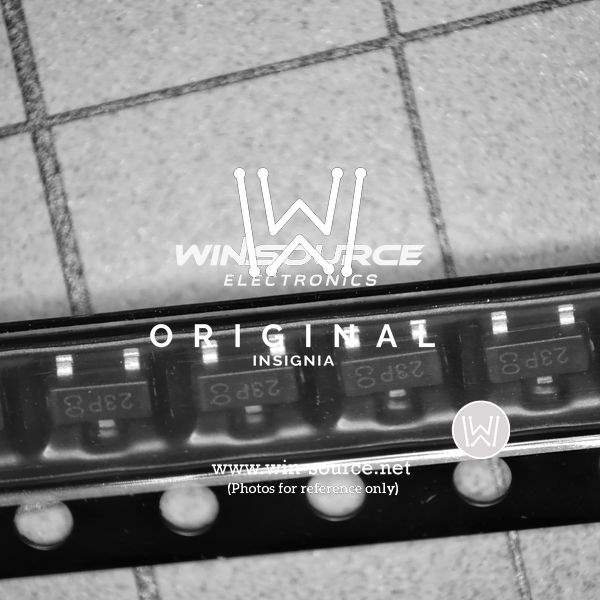

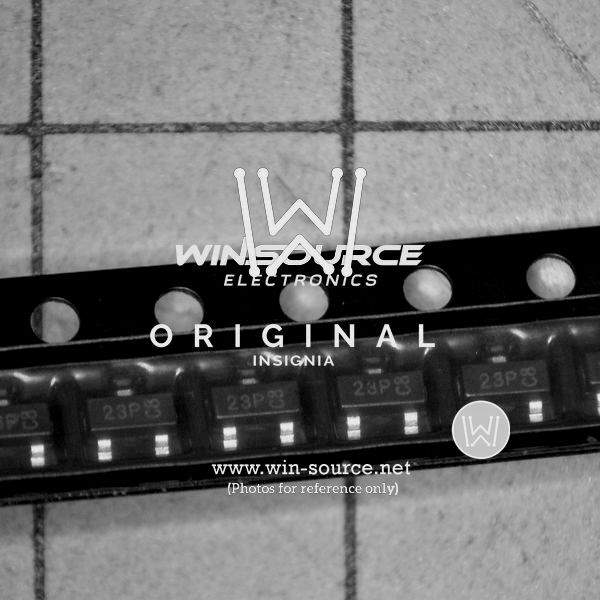

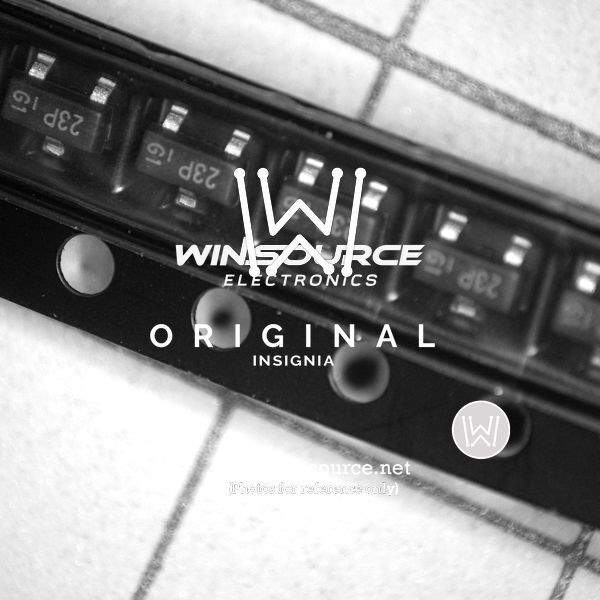

• Advanced Packaging: Housed in a compact SOT-23 package, the DMP2305U-7 is designed for space-constrained applications without compromising performance.
• High Threshold Voltage: The device features a threshold voltage (V<sub>GS(th)) that ensures reliable operation even under fluctuating voltage conditions.

Applications

The flexibility and robustness of the DMP2305U-7 make it an excellent choice for various applications, including:

• Power Management Circuits
• Battery-Powered Devices
• Load Switching
• Portable Electronics
• DC/DC Converters

Electrical Characteristics

With a drain-source voltage (V<sub>DS) of -20V and a continuous drain current (I<sub>D) of -4.3A, the DMP2305U-7 is capable of managing significant power. Its gate-source voltage (V<sub>GS) ranges from -8V to +8V, providing a wide operational window for various circuit designs.

Reliability and Quality

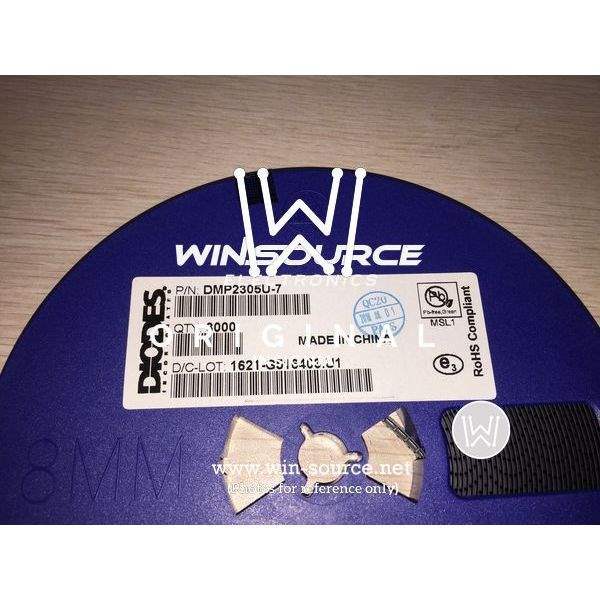

Diodes Incorporated is committed to delivering high-quality products, and the DMP2305U-7 is no exception. It is lead-free, RoHS compliant, and adheres to the highest standards of reliability and environmental safety.

For detailed specifications, application notes, and additional resources, designers and engineers are encouraged to consult the datasheet and technical documentation provided by Diodes Incorporated.
