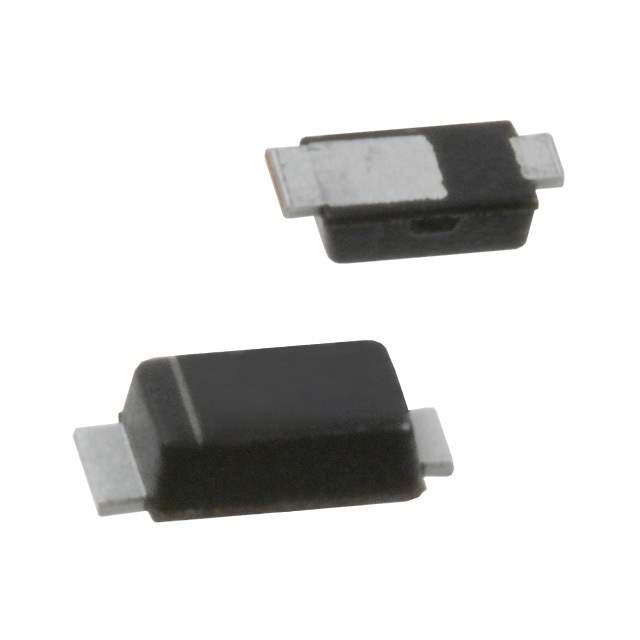

The PD3S230H-7 is a high-performance Schottky barrier diode designed and manufactured by Diodes Incorporated, a leading company in the semiconductor market. This diode is engineered to offer superior efficiency for rectification and switching applications, making it an ideal choice for modern electronic devices that require high-speed operation and minimal power loss.

Key Features

• Low Forward Voltage Drop: The PD3S230H-7 is characterized by its low forward voltage drop, which enhances the overall efficiency of the system by reducing power dissipation during operation.
• High Current Capability: With a forward continuous current rating of 2A, this diode is capable of handling high current applications, ensuring reliability even under demanding conditions.
• Fast Switching Speed: The device boasts a rapid switching speed, which is essential for high-frequency applications and contributes to the reduction of switching losses.
• Surface Mount Package: Housed in a compact SOD-123F package, the PD3S230H-7 is suitable for surface mount technology (SMT), allowing for efficient assembly and space-saving on printed circuit boards (PCBs).
• High Surge Capability: Its robust construction allows for high surge current capability, providing enhanced durability and protection against unexpected current spikes.
• RoHS Compliant: The product is compliant with the Restriction of Hazardous Substances (RoHS) directive, ensuring that it is free from environmentally harmful substances.

Applications

The versatility of the PD3S230H-7 allows it to be used in a wide range of applications, including:

• DC-DC converters
• Power supply management
• Freewheeling diodes in converters and motor control circuits
• Reverse battery protection
• Automotive applications requiring AEC-Q101 qualification

Product Specifications

Parameter Value Package SOD-123F Forward Continuous Current (If) 2A Peak Reverse Voltage (Vr) 30V Forward Voltage Drop (Vf) Typically 0.5V at 1A

Overall, the PD3S230H-7 from Diodes Incorporated is a high-quality component that delivers reliability and performance for a multitude of electronic applications. Its combination of speed, efficiency, and compact packaging makes it an excellent choice for designers looking to optimize their power management systems.
