XR20M1170IL16-F

Part No XR20M1170IL16-F
Manufacturer Exar Corporation
Catalog Interface - Controllers
Description IC UART FIFO I2C/SPI 64B 16QFN
Datasheet
XR20M1170IL16-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Exar Corporation
Packaging Bulk
Status Active
Protocol RS485
Purpose Controller
Supply Voltage - Operating 2.25 V to 3.6 V
Operating Supply Current 500μA
Temperature Range - Operating -40°C to 85°C

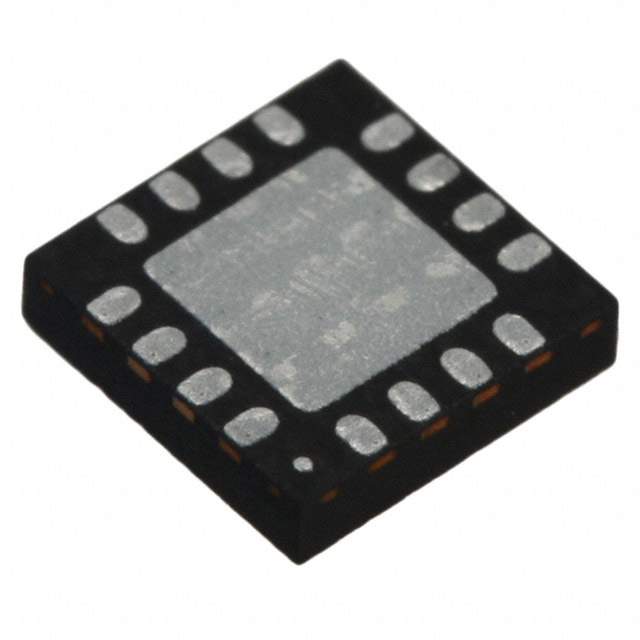

Case / Package 16-QFN-EP (4x4)
Win Source Part Number 1119537-XR20M1170IL16-F
Family Name XR20M1170
Introduction Date May 31, 2000
ECCN 5A991
Halogen Free Compliant
Estimated EOL Date 2024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian XR20M1170IL16-F CAD Model

Description

The Exar Corporation XR20M1170IL16-F is a controller electronic component designed for use in integrated circuits.

  • Application: RS485 Protocols
  • Data Rate: 500μA
  • Operating Temperature: -40°C to 85°C
  • Mounting: 16-QFN-EP (4x4)
  • Packaging: Bulk
