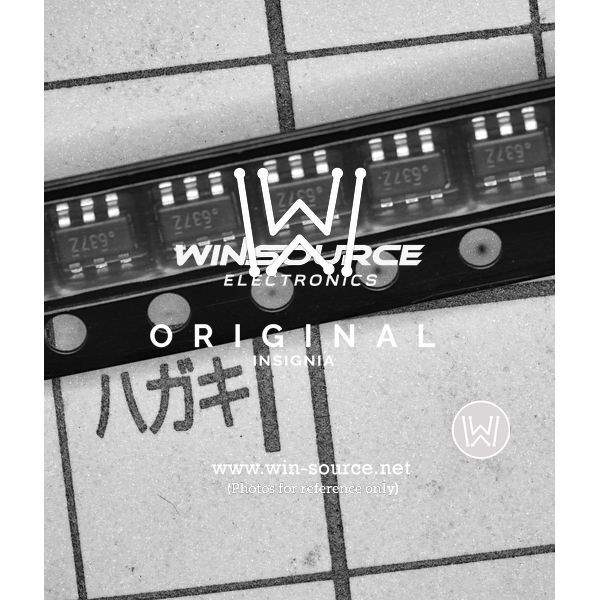

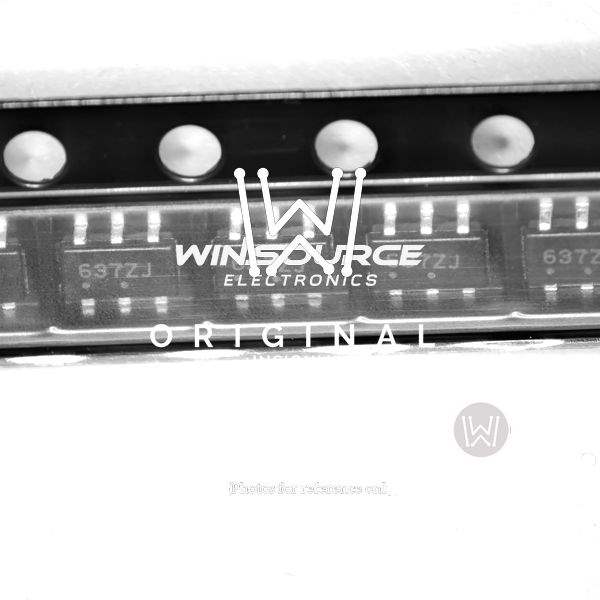

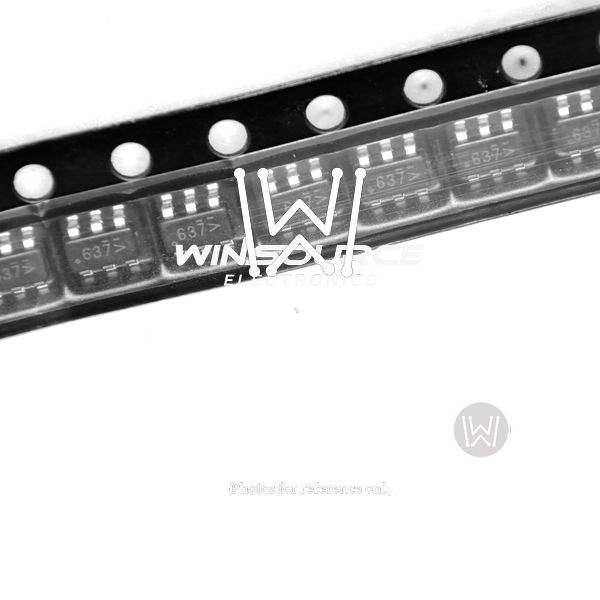

FDC637BNZ Fairchild/ON Semiconductor FDC637BNZ real image4030 FDC637BNZ Real Image1 FDC637BNZ Real Image2
Same model may have multiple batches, images only for reference.
FDC637BNZ Fairchild/ON Semiconductor FDC637BNZ real image4030 FDC637BNZ Real Image1 FDC637BNZ Real Image2
FDC637BNZ Fairchild/ON Semiconductor FDC637BNZ real image4030 FDC637BNZ Real Image1 FDC637BNZ Real Image2
Same model may have multiple batches, images only for reference.

FDC637BNZ

Part No FDC637BNZ
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 20V 6.2A 6-SSOT
Datasheet
FDC637BNZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 6.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 2.5V, 4.5V
Gate-Source Threshold Voltage 1.5V @ 250μA
Max Gate Charge 12nC @ 4.5V
Max Input Capacitance 895pF @ 10V
Maximum Gate-Source Voltage ±12V
Power Dissipation (Max) 1.6W (Ta)
Maximum Rds On at Id,Vgs 24 mOhm @ 6.2A, 4.5V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SuperSOT-6
Dimension SOT-23-6 Thin, TSOT-23-6
Win Source Part Number 126928-FDC637BNZ
Family Name FDC637BNZ
Introduction Date July 28, 2006
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian FDC637BNZ CAD Model

Description

FDC637BNZ Description

The FDC637BNZ is a highly efficient, N-channel MOSFET featuring low conduction losses and robust switching capability. Designed for applications requiring rapid switching and high-frequency operation, this component offers designers the ideal balance between performance and reliability.

  • Applications
    • DC-DC converters
    • Power management systems
    • Motor control circuits
  • Features and Benefits
    • Low on-resistance
    • Fast switching speed
    • Small SOT-23 package footprint
  • Additional Details
    • Maximum Drain Current: 2.3 A
    • Drain-Source Voltage: 20 V
    • RoHS compliant
