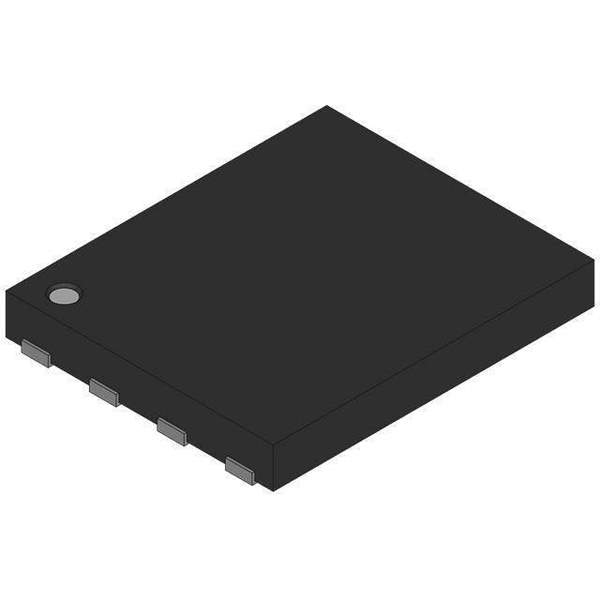

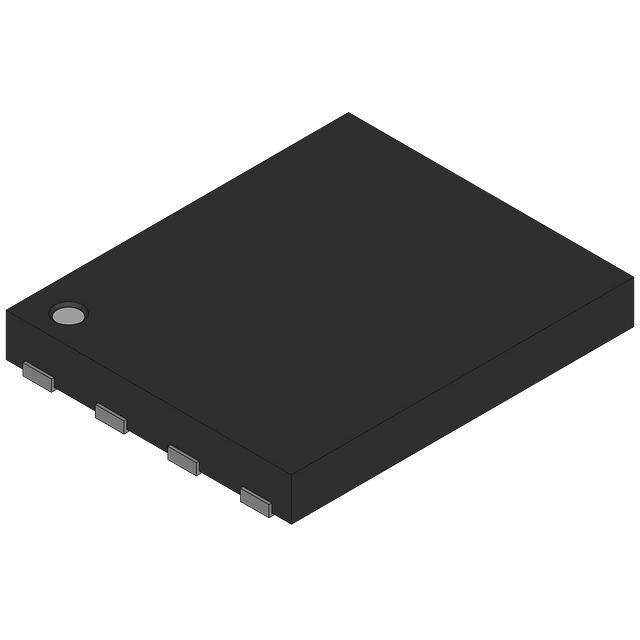

FDMS8570S Real Image
Same model may have multiple batches, images only for reference.

FDMS8570S

Part No FDMS8570S
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 25V 24A 8-PQFN
Datasheet
FDMS8570S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 25V
Continuous Drain Current at 25°C 24A (Ta), 60A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 2.2V @ 1mA
Max Gate Charge 425nC @ 10V
Max Input Capacitance 2825pF @ 13V
Maximum Gate-Source Voltage ±12V
Power Dissipation (Max) 2.5W (Ta), 48W (Tc)
Maximum Rds On at Id,Vgs 2.8 mOhm @ 24A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 8-PQFN (5x6), Power56
Dimension 8-PowerTDFN
Win Source Part Number 1038254-FDMS8570S
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian FDMS8570S CAD Model

Description

The FDMS8570S is an N-Channel MOSFET from Fairchild/ON Semiconductor.

  • Manufacturer: Fairchild/ON Semiconductor
  • Channel Type: N-Channel MOSFET
  • Drain-Source Breakdown Voltage: 25V
  • Continuous Drain Current: 24A @ 25°C, 60A @ Tc
  • Gate-Source Threshold Voltage: 2.2V @ 1mA
  • Maximum Rds On: 2.8 mOhm @ 24A, 10V
  • Power Dissipation: 2.5W (Ta), 48W (Tc)
  • Package: 8-PQFN (5x6), Power56
  • Application: Discrete Semiconductor Products
  • Drive Voltage: 4.5V and 10V
  • Product Status: Active
  • Temperature Range: -55°C to 150°C (TJ)
  • Package Quantity: 3k pcs
