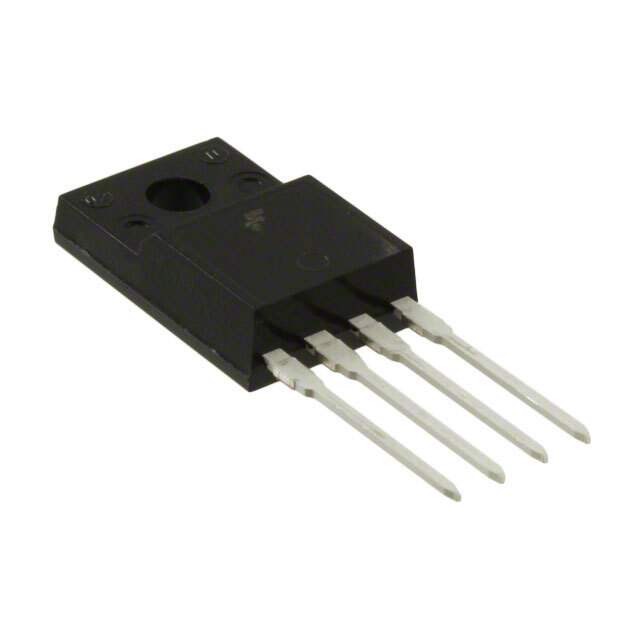

KA5H0380RTU Real Image
Same model may have multiple batches, images only for reference.

KA5H0380RTU

Part No KA5H0380RTU
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - AC DC Converters, Offline Switchers
Description IC SWIT PWM CM OVP UVLO HV TO220
Datasheet
KA5H0380RTU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Not For New Designs
Internal Switch(s) Yes
Voltage - Breakdown 800V
Topology Flyback, Forward
Voltage - Start Up 15V
Supply Voltage - Operating 9 V to 30 V
Duty Cycle 67%
Frequency - Switching 100kHz
Fault Protection Current Limiting, Over Temperature, Over Voltage
Control Operating Temperature -40°C to 85°C (TA)
Case / Package TO-220F-4L
Mounting Through Hole
Win Source Part Number 083766-KA5H0380RTU
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name KA5H0380R
Introduction Date February 05, 2001
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2019
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian KA5H0380RTU CAD Model

Description

The Fairchild/ON Semiconductor KA5H0380RTU is a flyback/forward converter from Fairchild/ON Semiconductor.

  • Designed for: use in power supplies, motor control, and lighting
  • Maximum voltage breakdown: 800V
  • Maximum switching frequency: 100kHz
  • Package: TO-220F-4L package
  • Mounting: easy to mount on a PCB
  • Features: a reliable and efficient component that is suitable for various electronic applications
