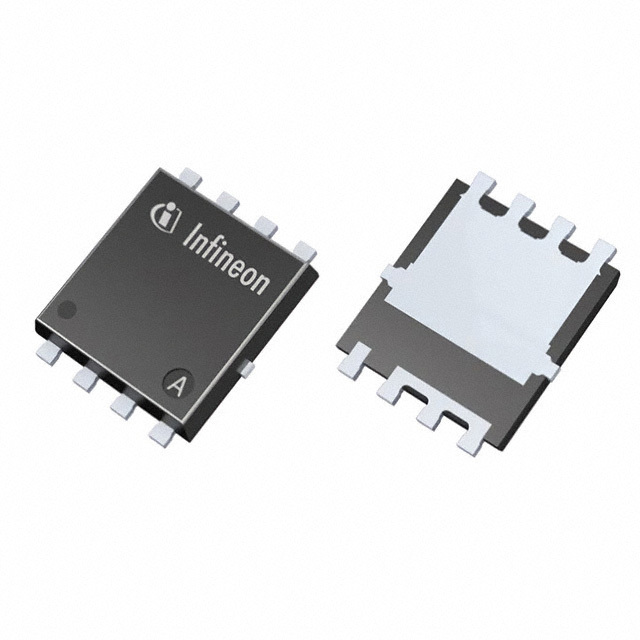

Same model may have multiple batches, images only for reference.
IPC100N04S52R8ATMA1 Infineon Technologies
Same model may have multiple batches, images only for reference.

IPC100N04S52R8ATMA1

Part No IPC100N04S52R8ATMA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 40V 100A 8TDSON-34 / N-Channel 40 V 100A (Tc) 75W (Tc) Surface Mount PG-TDSON-8-34
Datasheet
IPC100N04S52R8ATMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Infineon Technologies
Series OptiMOS™
Package Tape & Reel
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 40 V
Current - Continuous Drain (Id) @ 25°C 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 7V, 10V
Rds On (Max) @ Id, Vgs 2.8mOhm @ 50A, 10V
Vgs(th) (Max) @ Id 3.4V @ 30µA
Gate Charge (Qg) (Max) @ Vgs 45 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 2600 pF @ 25 V
Power Dissipation (Max) 75W (Tc)
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting SMD (SMT)
Supplier Device Package PG-TDSON-8-34
Package / Case 8-PowerTDFN
Base Product Number IPC100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names IPC100N04S52R8ATMA1-ND,2156-IPC100N04S52R8ATMA1,INFINFIPC100N04S52R8ATMA1,IPC100N04S52R8ATMA1CT,IPC100N04S52R8ATMA1TR,IPC100N04S52R8ATMA1DKR,SP001418102
Standard Package 5,000
Win Source Part Number 1065234-IPC100N04S52R8ATMA1
Ultra Librarian 3D Model Ultra Librarian IPC100N04S52R8ATMA1 CAD Model

Description

The Infineon Technologies 1065234-IPC100N04S52R8ATMA1 is an OptiMOS MOSFET that comes in a tape and reel package.

  • Mounting Style: SMD
  • Current Continuous Drain: 100A (Tc)
  • Rds On: 2.8mOhm @ 50A, 10V
  • Gate Charge: 45 nC @ 10 V
  • Input Capacitance: 2600 pF @ 25 V
  • ECCN: EAR99
  • Halogen-Free: Compliant
  • MSL Level: 1
  • REACH Status: Unaffected
