The 603568-IPI60R125CP is a N-Channel MOSFET transistor from Infineon Technologies.

• Part of the CoolMOS™ series of discrete semiconductor products
• Drain-to-source voltage (Vdss): 600V
• Continuous drain current (Id): 25A @ 25°C
• Maximum on-resistance (Rds On): 125mOhm @ 16A and 10V gate-source voltage (Vgs)
• Gate threshold voltage (Vgs(th)): 3.5V @ an idle current (Id) of 1.1mA
• Maximum power dissipation: 208W
• Suitable for high-power applications
• Designed for through-hole mounting

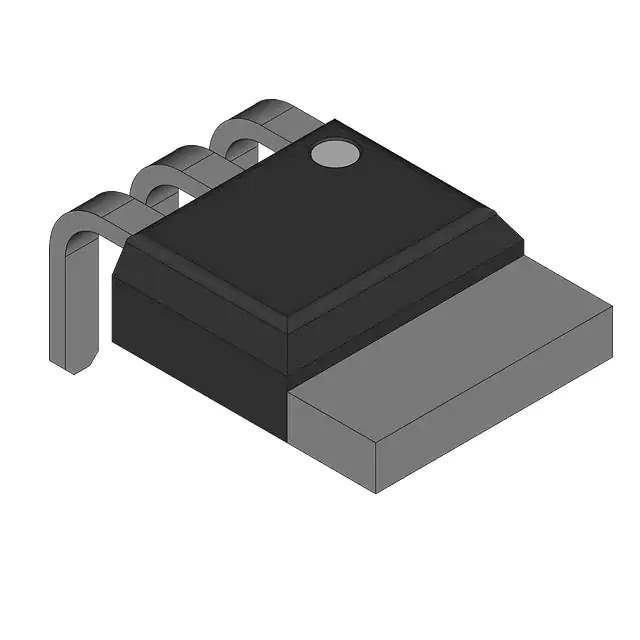

• Comes in a TO-262-3 Long Leads, I²Pak, TO-262AA package
• Gate charge (Qg): 70nC @ 10V gate-source voltage (Vgs)
• Input capacitance (Ciss): 2500pF @ 100V drain-to-source voltage (Vds)
• Operating temperature range: -55°C to 150°C
• Active and widely used in applications requiring high-power switching
