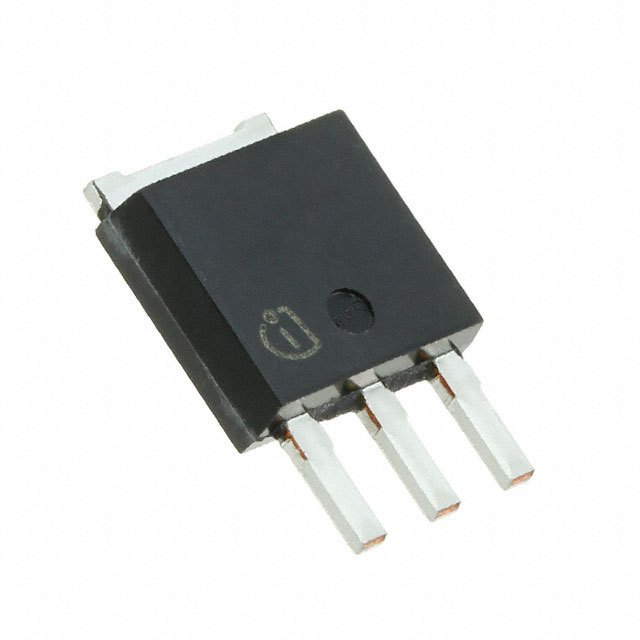

IPS65R1K4C6 Infineon Technologies
Same model may have multiple batches, images only for reference.

IPS65R1K4C6

Part No IPS65R1K4C6
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 650V 3.2A TO-251
Datasheet
IPS65R1K4C6 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Tube/Rail
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 650V
Continuous Drain Current at 25°C 3.2A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 3.5V @ 100μA
Max Gate Charge 10.5nC @ 10V
Max Input Capacitance 225pF @ 100V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 28W (Tc)
Maximum Rds On at Id,Vgs 1.4 Ohm @ 1A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package PG-TO251-3
Dimension TO-251-3 Stub Leads, IPak
Win Source Part Number 040653-IPS65R1K4C6
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian IPS65R1K4C6 CAD Model

Description

The Infineon Technologies 040653-IPS65R1K4C6 is an N-channel MOSFET with a drain-source breakdown voltage of 650V and a maximum continuous drain current of 3.2A @ 25°C.

  • Power Dissipation: 28W (Tc)
  • Maximum Rds On: 1.4 Ohm @ 1A and 10V
  • Gate-Source Threshold Voltage: 3.5V @ 100μA
  • Maximum Gate Charge: 10.5nC @ 10V
  • Maximum Input Capacitance: 225pF @ 100V
  • Maximum Gate-Source Voltage: ±20V
  • Package: PG-TO251-3
  • Mounting: Through hole
  • Supply and Demand Status: Limited
