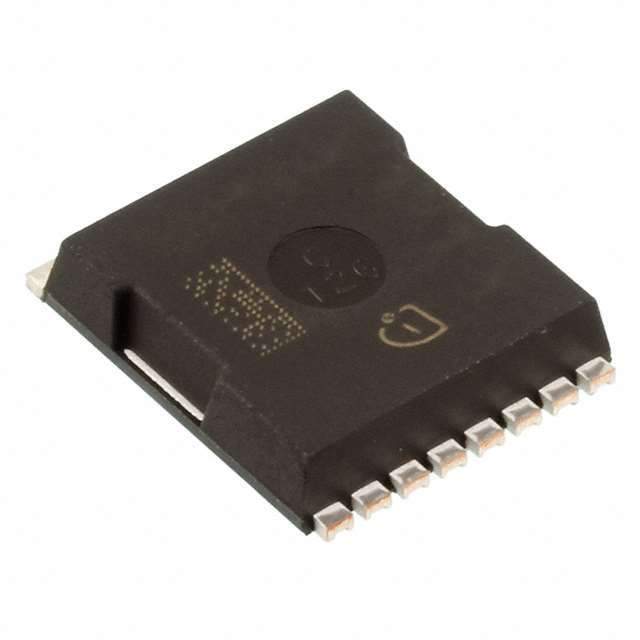

The IPT007N06NATMA1 is a OptiMOS™ power MOSFET from Infineon Technologies. It's designed for high-efficiency power conversion and switching applications. This N-channel MOSFET offers low on-resistance (RDS(on)) and fast switching speeds, making it suitable for synchronous rectification, DC-DC converters, and motor control applications.

Applications:

• Synchronous Rectification: Used in secondary-side rectification in power supplies to improve efficiency.
• DC-DC Converters: Employed in various DC-DC converter topologies, including buck, boost, and buck-boost converters.
• Motor Control: Found in motor control circuits for applications like power tools, e-bikes, and robotics.
• Battery Management Systems (BMS): Used in BMS for battery charging and discharging control.
• Load Switches: Implemented as load switches in power distribution systems.

Features:

• OptiMOS™ Technology: Provides superior switching performance and low on-resistance.
• Low RDS(on): Minimizes conduction losses, leading to higher efficiency.
• Fast Switching Speed: Reduces switching losses and improves overall system performance.
• Avalanche Rated: Provides robustness against voltage spikes and overvoltage conditions.
• Logic Level Input: Compatible with logic-level gate drive signals.
• Pb-free and RoHS Compliant: Complies with environmental regulations.

Benefits:

• High Efficiency: Reduces energy consumption and lowers operating costs.
• Improved Thermal Performance: Enables higher power density and smaller system size.
• Simplified Design: Reduces design complexity and speeds up time-to-market.
• Enhanced Reliability: Ensures long-term system performance and reduces downtime.
• Reduced System Cost: Optimizes component count and lowers overall system cost.

Additional Details:

The IPT007N06NATMA1 features a drain-source voltage (VDS) of 60V and a continuous drain current (ID) of up to 100A at 25°C case temperature. The typical RDS(on) is 7 mOhms at VGS = 10V. It is available in a PG-TDSON-8 package. The device is designed to operate over a wide temperature range and is suitable for applications requiring high power density and efficiency. The logic-level gate drive simplifies the driving circuitry and reduces power consumption in the gate drive stage.
