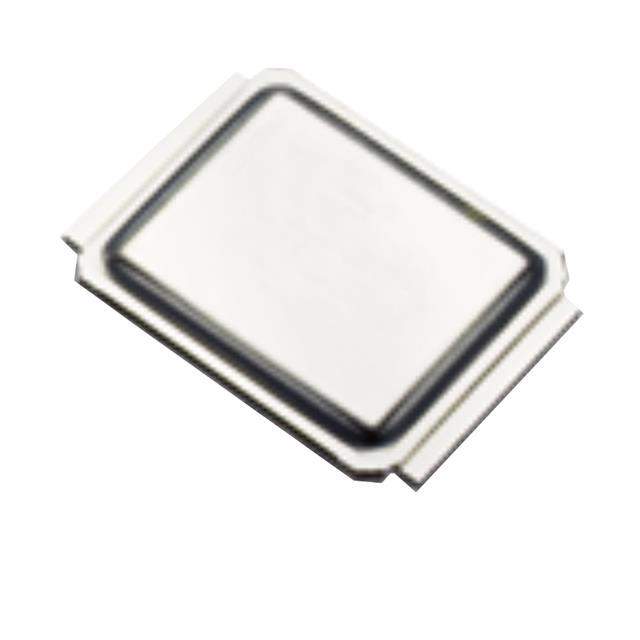

IRF7780MTRPBF

Name: IRF7780MTRPBF
Brand: Infineon Technologies
SKU: 988629
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IRF7780MTRPBF
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 75V 89A DIRECTFET / N-Channel 75 V 89A (Tc) 96W (Tc) Surface Mount DirectFET™ Isometric ME
Datasheet	IRF7780MTRPBF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Infineon Technologies
Series	StrongIRFET™
Package	Tape & Reel
Product Status	Last Time Buy
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	75 V
Current - Continuous Drain (Id) @ 25°C	89A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	5.7mOhm @ 53A, 10V
Vgs(th) (Max) @ Id	3.7V @ 150µA
Gate Charge (Qg) (Max) @ Vgs	186 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	6504 pF @ 25 V
Power Dissipation (Max)	96W (Tc)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	SMD (SMT)
Supplier Device Package	DirectFET™ Isometric ME
Package / Case	DirectFET™ Isometric ME
Base Product Number	IRF7780
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	IRF7780MTRPBFCT,IRF7780MTRPBF-ND,IRF7780MTRPBFTR,SP001551498,IRF7780MTRPBFDKR
Standard Package	4,800
Win Source Part Number	988629-IRF7780MTRPBF
Ultra Librarian 3D Model	Ultra Librarian IRF7780MTRPBF CAD Model

Alternative Products

Description

The IRF7780MTRPBF is an N-Channel MOSFET transistor designed for use in single FET applications.

Drain to Source Voltage (Vdss): 75V
Continuous Drain Current (Id): 89A (Tc) @ 25°C
Rds On (Max) @ Id, Vgs: 5.7mOhm @ 53A, 10V
Gate Charge (Qg) (Max) @ Vgs: 186 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 6504 pF @ 25 V
Package: DirectFET™ Isometric ME
Mounting: SMD (SMT)
Category: Transistors - FETs, MOSFETs - Single
Operating Temperature: -55°C to 150°C (TJ)
