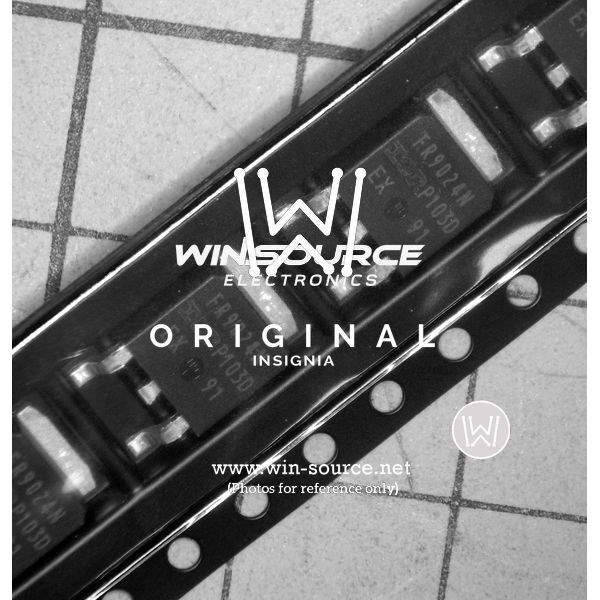

IRFR9024N Infineon Technologies IRFR9024N real image373 IRFR9024N Real Image
Same model may have multiple batches, images only for reference.
IRFR9024N Infineon Technologies IRFR9024N real image373 IRFR9024N Real Image
IRFR9024N Infineon Technologies IRFR9024N real image373 IRFR9024N Real Image
Same model may have multiple batches, images only for reference.

IRFR9024N

Part No IRFR9024N
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 55V 11A DPAK
Datasheet
IRFR9024N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Active
Polarity P-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 55V
Continuous Drain Current at 25°C 11A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 4V @ 250μA
Max Gate Charge 19nC @ 10V
Max Input Capacitance 350pF @ 25V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 38W (Tc)
Maximum Rds On at Id,Vgs 175 mOhm @ 6.6A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package D-Pak
Dimension TO-252-3, DPak (2 Leads + Tab), SC-63
Win Source Part Number 093685-IRFR9024N
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IRFR9024N CAD Model

Description

The Infineon Technologies IRFR9024N is a P-channel MOSFET that is part of the Discrete Semiconductor Products category.

  • Power Dissipation (Max): 38W (Tc)
  • Package: D-Pak
  • Dimensions: TO-252-3, DPak (2 Leads + Tab), SC-63
  • Drain-Source Breakdown Voltage: 55V
  • Continuous Drain Current @ 25°C: 11A (Tc)
  • Gate-Source Threshold Voltage: 4V @ 250μA
  • Max Gate Charge: 19nC @ 10V
  • Max Input Capacitance: 350pF @ 25V
  • Max Rds On @ Id,Vgs: 175 mOhm @ 6.6A, 10V
  • Supply and Demand Status: balanced
