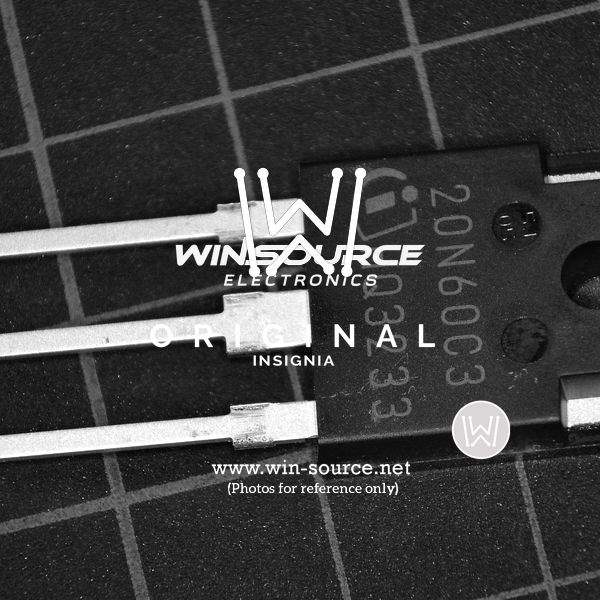

Same model may have multiple batches, images only for reference.

SPW20N60C3FKSA1

Name: SPW20N60C3FKSA1
Brand: Infineon Technologies
SKU: 1002280
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SPW20N60C3FKSA1
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 650V 20.7A TO247-3 / N-Channel 650 V 20.7A (Tc) 208W (Tc) Through Hole PG-TO247-3-1
Datasheet	SPW20N60C3FKSA1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Infineon Technologies
Series	CoolMOS™
Package	Tube
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	20.7A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	190mOhm @ 13.1A, 10V
Vgs(th) (Max) @ Id	3.9V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	114 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2400 pF @ 25 V
Power Dissipation (Max)	208W (Tc)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	PG-TO247-3-1
Package / Case	TO-247-3
Base Product Number	SPW20N60
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	SPW20N60C3IN-NDR,SPW20N60C3XK,SPW20N60C3IN-ND,SP000013729,SPW20N60C3,SPW20N60C3IN
Standard Package	30
Win Source Part Number	1002280-SPW20N60C3FKSA1
Ultra Librarian 3D Model	Ultra Librarian SPW20N60C3FKSA1 CAD Model

Alternative Products

Description

The SPW20N60C3FKSA1 is a CoolMOS™ N-channel MOSFET type electronic component manufactured by Infineon Technologies.

Drain to Source Voltage: 650 V
Continuous Drain Current: 20.7A (Tc)
Maximum Rds On: 190mOhm @ 13.1A, 10V
Maximum Vgs(th): 3.9V @ 1mA
Mounting Type: Through-Hole
Package/Case: TO-247-3
Temperature Range: -55°C to 150°C (TJ)
