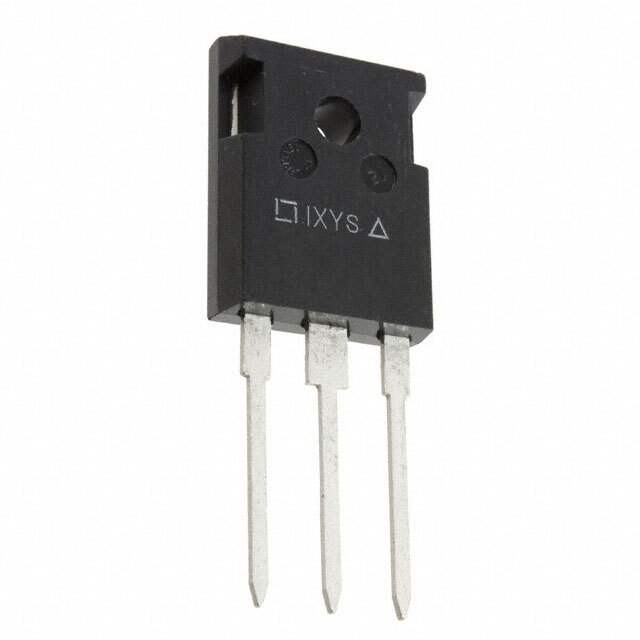

DSEK60-02A Real Image
Same model may have multiple batches, images only for reference.

DSEK60-02A

Part No DSEK60-02A
Manufacturer IXYS
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY GP 200V 34A TO247AD
Datasheet
DSEK60-02A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Tube/Rail
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 200V
Current - Average Rectified (Io) (per Diode) 34A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 30A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 50ns
Current - Reverse Leakage @ Vr 200μA @ 200V
Operating Temperature - Junction -40°C to 150°C
Mounting Through Hole
Case / Package TO-247AD
Win Source Part Number 014897-DSEK60-02A
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian DSEK60-02A CAD Model

Description

Product Overview

The DSEK60-02A is a versatile diode component equipped with low forward voltage drop and surge capability, perfect for a wide range of power applications.

Features and Benefits

  • Reverse Voltage: 200V
  • Forward Current: 60A
  • Low Forward Voltage Drop
  • Excellent Surge Capability
  • Durable and Efficient

This diode ensures minimal power loss and offers high-current handling capacity.

Applications

  • Solar Inverters
  • Battery Chargers
  • Uninterruptible Power Supplies (UPS)
  • Electric Vehicle (EV) Systems

Choose the DSEK60-02A for applications demanding high reliability and efficiency.
