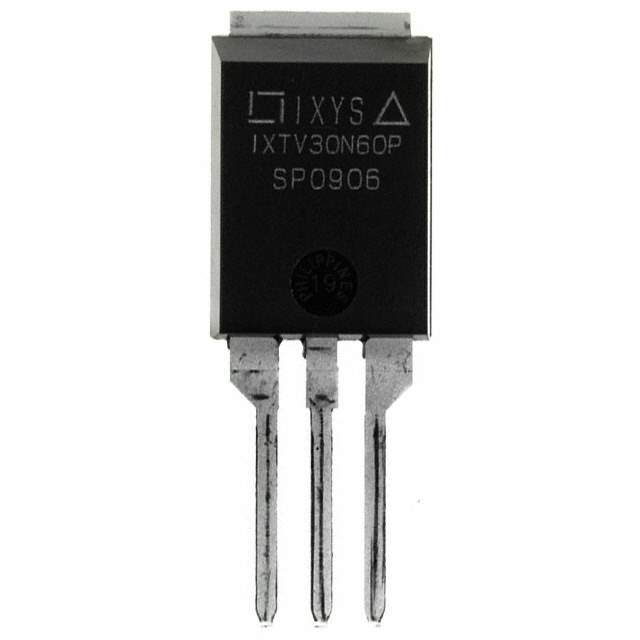

IXTV30N60P Real Image
Same model may have multiple batches, images only for reference.

IXTV30N60P

Part No IXTV30N60P
Manufacturer IXYS
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 600V 30A PLUS220 / N-Channel 600 V 30A (Tc) 540W (Tc) Through Hole PLUS220
Datasheet
IXTV30N60P Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr IXYS
Series PolarHV™
Package Tube
Product Status Obsolete
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 600 V
Current - Continuous Drain (Id) @ 25°C 30A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 240mOhm @ 15A, 10V
Vgs(th) (Max) @ Id 5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 82 nC @ 10 V
Vgs (Max) ±30V
Input Capacitance (Ciss) (Max) @ Vds 5050 pF @ 25 V
Power Dissipation (Max) 540W (Tc)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Supplier Device Package PLUS220
Package / Case TO-220-3, Short Tab
Base Product Number IXTV30
Standard Package 50
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1346771-IXTV30N60P
Ultra Librarian 3D Model Ultra Librarian IXTV30N60P CAD Model

Description

The IXTV30N60P is a N-Channel MOSFET (Metal Oxide) transistor from the PolarHV™ series of IXYS.

  • FET Type: MOSFET
  • Channel Type: N-Channel
  • Series: PolarHV™
  • Drain to Source Voltage (Vdss): 600 V
  • Power Dissipation: 540W (Tc)
  • Mounting Type: Through Hole
  • Package/Case: TO-220-3 or Short Tab
  • Vgs: ±30V
  • Operating Temperature Range: -55°C ~ 150°C (TJ)
  • Current Rating: 30A (Tc)
  • Rds On: 240mOhm @ 15A, 10V
  • Vgs(th): 5V @ 250μA
  • Gate Charge (Qg): 82 nC @ 10 V
  • Input Capacitance (Ciss): 5050 pF @ 25 V
