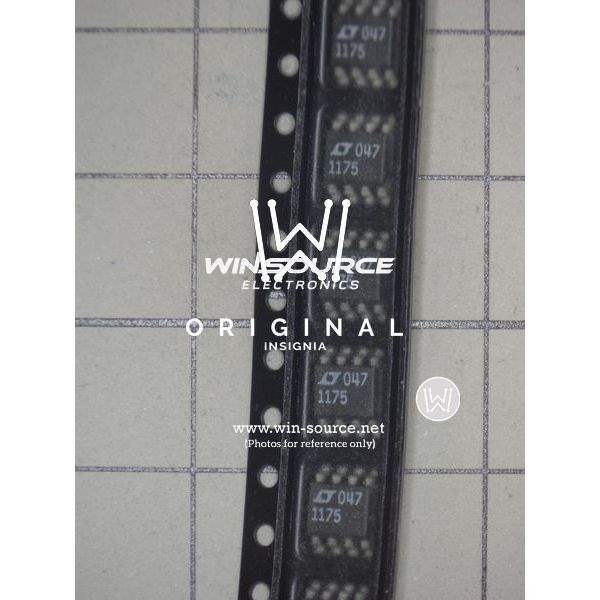

The LT1175CS8#TRPBF is a high-performance, low dropout negative voltage regulator designed by Linear Technology, which is renowned for its precision electronic components. This regulator is specifically tailored for applications that require a stable and reliable negative voltage supply. It comes in a compact SOP-8 package, making it suitable for space-constrained applications.

Key Features

• Adjustable Output: The LT1175 can be set to any voltage between -2.5V and -20V, providing flexibility for various design requirements.
• Low Dropout Voltage: With a low dropout voltage of typically 0.6V at full load, it ensures efficient operation even when the input voltage is close to the output voltage.
• High Output Current: Capable of delivering up to 500mA of output current, it can power a wide range of components.
• Low Quiescent Current: The device features a low quiescent current, making it ideal for battery-powered and energy-efficient applications.
• Overcurrent and Overtemperature Protection: Built-in protection mechanisms safeguard the regulator and the application from potential damage due to excessive current or temperature.
• Stable with Low ESR Capacitors: The LT1175 remains stable with low ESR output capacitors, which can improve performance and reliability.

Applications

The LT1175CS8#TRPBF is versatile and can be used in a variety of applications, including:

• Power supplies for operational amplifiers
• Battery-powered equipment
• Negative voltage logic supplies
• Instrumentation
• Automotive electronics

Quality and Reliability

Linear Technology ensures that the LT1175CS8#TRPBF meets rigorous quality and reliability standards. Each regulator is tested to perform under various conditions and is packaged in a tape and reel format (TRPBF suffix) for automated assembly processes, ensuring ease of integration into manufacturing workflows.

With its robust feature set and Linear Technology's commitment to quality, the LT1175CS8#TRPBF is an excellent choice for designers looking for a reliable negative voltage regulator for their next project.
