LT1790BCS6-2.5#TRMPBF - Precision Series Reference

The LT1790BCS6-2.5#TRMPBF is a high-performance, low-power, series voltage reference from Linear Technology, now part of Analog Devices. This precision voltage reference is designed for portable and battery-powered applications where power efficiency and accuracy are critical. With a fixed output voltage of 2.5V, it provides a stable reference for analog-to-digital converters, digital-to-analog converters, and other precision circuitry.

Key Features

• Output Voltage: Precisely trimmed to 2.5V, offering a stable and accurate reference voltage for various applications.
• Low Power Consumption: Ideal for battery-powered and portable devices due to its low quiescent current, minimizing the impact on battery life.
• High Accuracy: Exhibits excellent accuracy and low drift over temperature, ensuring reliable performance in critical applications.
• Temperature Range: Operable over a wide industrial temperature range, making it suitable for harsh environments.
• Packaging: Comes in a compact SOT-23 package, which is ideal for space-constrained applications.

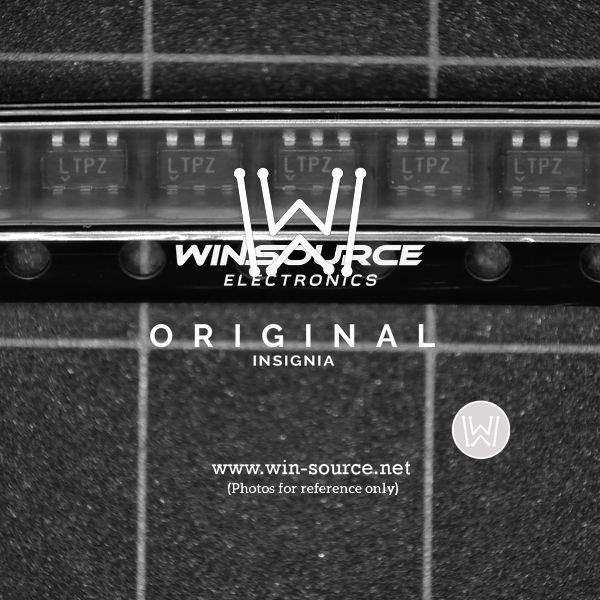

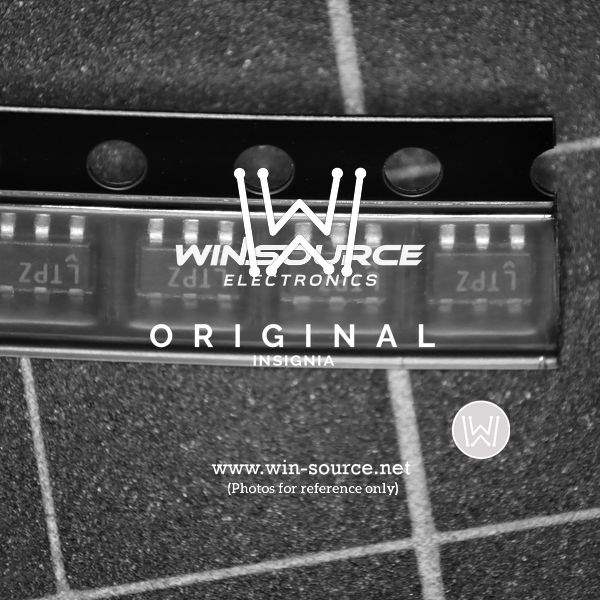

• Tape and Reel Packaging: The #TRMPBF suffix indicates that the product is provided in tape and reel packaging, facilitating automated pick-and-place manufacturing processes.

Applications

The LT1790BCS6-2.5#TRMPBF is versatile and can be used in a variety of applications, including:

• Portable and battery-powered equipment
• Precision data acquisition systems
• Microprocessor or microcontroller reference
• Industrial control systems
• Automotive electronics

Quality and Reliability

Linear Technology's commitment to quality ensures that the LT1790BCS6-2.5#TRMPBF voltage reference is manufactured to the highest standards. Its robust design and thorough testing guarantee long-term reliability for mission-critical applications where consistent performance is non-negotiable.

Overall, the LT1790BCS6-2.5#TRMPBF is an excellent choice for designers seeking a compact, precise, and reliable voltage reference that can operate efficiently in a wide range of temperatures and conditions. Its combination of features makes it a versatile component for any precision voltage regulation task.
