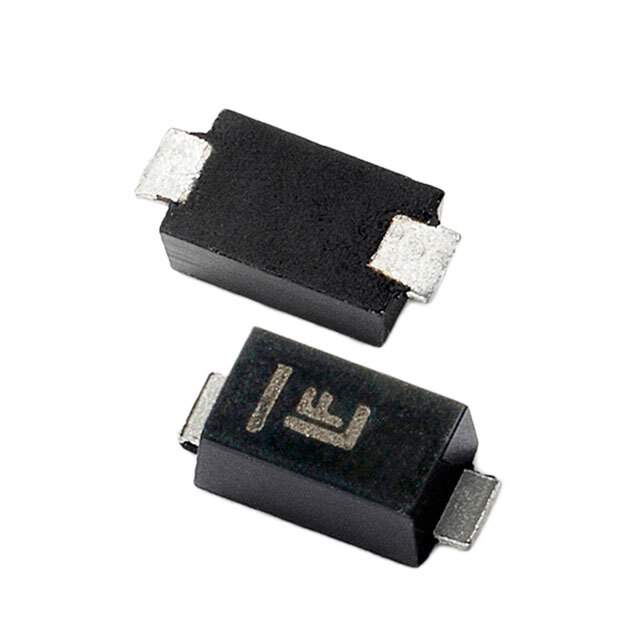

Same model may have multiple batches, images only for reference.

TPSMF4L8.0A

Name: TPSMF4L8.0A
Brand: Littelfuse Inc.
SKU: 937505
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TPSMF4L8.0A
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 8VWM 13.6VC SOD123FL
Datasheet	TPSMF4L8.0A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Estimated Pruduction Lead Time	48 Weeks
Features	13.6V Clamp 27.2A Ipp Tvs Diode Surface Mount SOD-123F
Manufacturer	Littelfuse Inc.
Series	Automotive, AEC-Q101, TPSMF4L
Package	Reel - TR
Operating Temperature Range	-55°C ~ 150°C (TJ)
Mounting	Surface Mount
Package	SOD-123F
Case / Package	SOD-123F
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0080
Other Part Number	F7531TR, F7531CT, F7531DKR, -TPSMF4L8.0A
Quantity per package	3000
Popularity	High
Supply and Demand Status	Balance
Win Source Part Number	937505-TPSMF4L8.0A
Ultra Librarian 3D Model	Ultra Librarian TPSMF4L8.0A CAD Model

Alternative Products

Description

The TPSMF4L8.0A is a surface mount TVS diode from Littelfuse Inc.

Clamp: 13.6V
Ipp: 27.2A
Application: circuit protection in automotive applications
Series: TPSMF4L series
Compliance: AEC-Q101 compliant
Temperature Range: -55°C to 150°C (TJ)
Package: packaged in SOD-123F
Packaging: reel of 3000 units
Application: surface mount applications
Popularity: high popularity component
Supply and Demand: balance of supply and demand in the open market
ECCN: EAR99
HTSUS: 8541.10.0080
