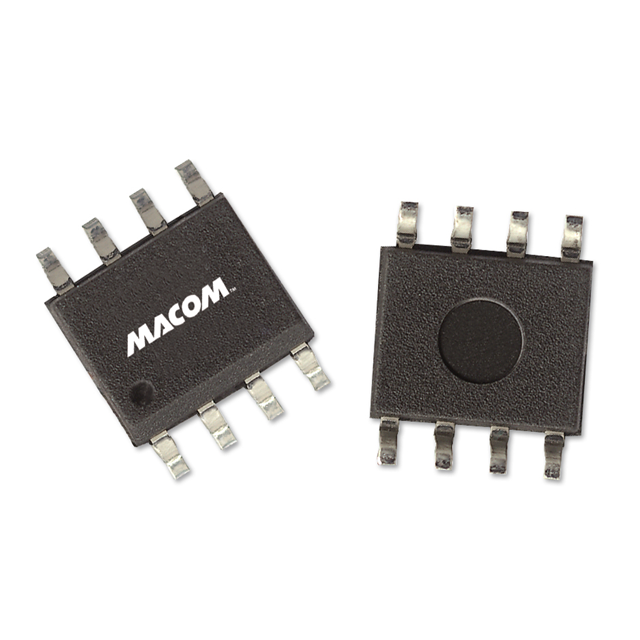

MAPDCC0003TR Real Image
Same model may have multiple batches, images only for reference.

MAPDCC0003TR

Part No MAPDCC0003TR
Manufacturer M/A-Com Technology Solutions
Catalog RF Power Dividers/Splitters
Description 2 POWER DIVIDER,TAPE AND REEL.  /  RF Power Divider 1.51 GHz ~ 1.66 GHz Isolation (Min) 15dB, 1.6 VSWR (Max), 3° Imbalance (Max) 8-SOIC (0.154", 3.90mm Width)
Datasheet
MAPDCC0003TR Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Power Dividers/Splitters
Mfr MACOM Technology Solutions
Package Tape & Reel
Insertion Loss 0.4dB
Frequency 1.51 GHz ~ 1.66 GHz
Specifications Isolation (Min) 15dB, 1.6 VSWR (Max), 3° Imbalance (Max)
Dimension 0.193" L x 0.154" W x 0.069" H (4.90mm x 3.90mm x 1.75mm)
Package / Case 8-SOIC (0.154", 3.90mm Width)
Base Product Number MAPDCC0003
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Other Names 1465-MAPDCC0003TR,1465-MAPDCC0003CT,1465-MAPDCC0003DKR
Standard Package 1,000
Win Source Part Number 1074790-MAPDCC0003TR
Ultra Librarian 3D Model Ultra Librarian MAPDCC0003TR CAD Model

Description

The MACOM Technology Solutions MAPDCC0003TR is an RF/IF and RFID electronic component that belongs to the RF Power Dividers/Splitters category.

  • Category: RF Power Dividers/Splitters
  • Manufacturer: MACOM Technology Solutions
  • Compliance: EAR99 compliant
  • MSL Level: 1 (Unlimited)
