Maxim Integrated ICM7217CIPI+ 4-Digit, Presettable LED Up/Down Counter

The ICM7217CIPI+ is a high-performance, 4-digit, presettable counter integrated circuit from Maxim Integrated, designed for use in a wide range of counting applications where LED displays are required. This versatile chip is capable of functioning as either an up-counter or a down-counter, providing designers with flexibility in their system design.

Featuring an on-chip oscillator, the ICM7217CIPI+ does not require any external clock source, simplifying the circuit design and reducing component count. The integrated circuit is equipped with an internal time base generator that can be adjusted with an external capacitor, allowing for easy customization of the counting speed.

The ICM7217CIPI+ comes with a multiplexed BCD (Binary-Coded Decimal) output that directly drives LED displays, making it an ideal solution for applications such as digital clocks, frequency meters, and event counters. The chip supports common anode or common cathode displays, providing further flexibility in display choices.

With its built-in latch and decoder, the ICM7217CIPI+ minimizes the need for additional decoding hardware. The device also includes a data input mode that allows it to be preset to any value before counting. This feature is particularly useful for applications requiring a predetermined start value or for setting initial conditions.

The ICM7217CIPI+ is designed for easy interfacing with microprocessors or microcontrollers, thanks to its straightforward parallel interface. The chip's control inputs include Load, Count, Reset, and Disable, which provide full control over the counting process.

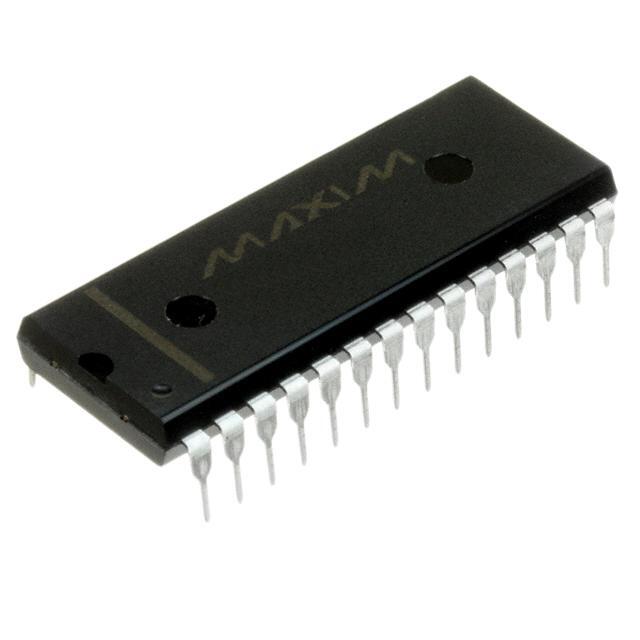

The device is packaged in a 28-pin DIP (Dual In-line Package), ensuring compatibility with standard breadboards and sockets for ease of prototyping and testing. The ICM7217CIPI+ operates over a wide voltage range and has a temperature range suitable for commercial applications.

Overall, the ICM7217CIPI+ from Maxim Integrated is a reliable and efficient solution for designers looking to implement LED-based counting displays in their projects, offering a high degree of functionality in a compact and easy-to-use package.
