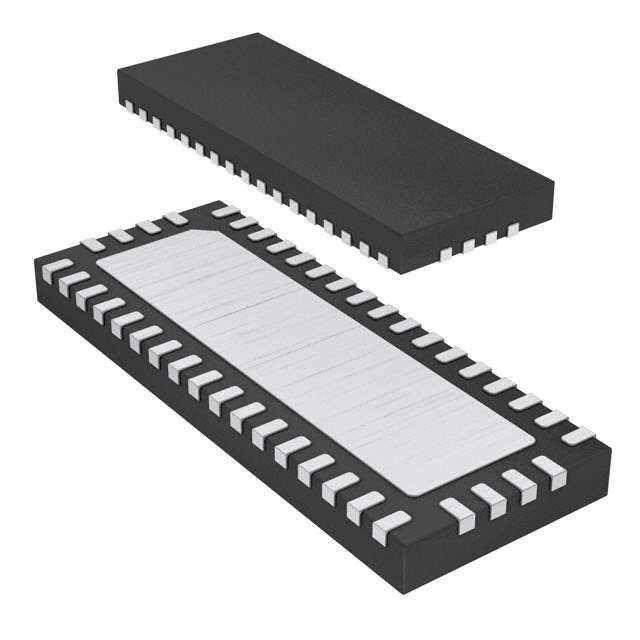

Maxim Integrated MAX14998ETO+T Product Overview

The MAX14998ETO+T from Maxim Integrated is a high-performance, dual-channel USB Type-C™ audio switch with an integrated low-dropout regulator (LDO) designed to deliver exceptional signal integrity and system power management. This compact solution is ideal for a variety of applications, including smartphones, tablets, and other portable devices that require efficient audio signal routing and power regulation.

Key Features

• Dual-Channel Audio Switch: The MAX14998ETO+T features two independent audio switches that support the USB Type-C audio accessory mode, allowing for seamless audio signal routing from the USB Type-C connector to the device's audio codec.
• Integrated LDO: The device includes an integrated LDO regulator that provides a stable power supply to the audio codec and other peripheral components, enhancing overall system reliability and performance.
• Low On-Resistance: With a low on-resistance of typically 0.5Ω (typ), the audio switches ensure minimal signal distortion and attenuation, delivering high-fidelity audio quality.
• High ESD Protection: The MAX14998ETO+T is designed with robust electrostatic discharge (ESD) protection, safeguarding the device against damage from voltage spikes and enhancing system durability.
• Compact Package: Available in a compact, 30-bump wafer-level package (WLP), the MAX14998ETO+T is optimized for space-constrained applications, enabling sleek and slim device designs.

Technical Specifications

• Supply Voltage Range: 2.7V to 5.5V
• Operating Temperature Range: -40°C to +85°C
• Package Type: 30-Bump WLP (2.1mm x 1.3mm)

Applications

• Mobile Phones and Smart Devices
• Tablets and Portable Media Players
• USB Type-C Audio Accessories
• Personal Computing Devices

The MAX14998ETO+T offers a versatile and efficient solution for managing audio signals and power in devices with USB Type-C connectivity. Maxim Integrated's commitment to quality and performance ensures that this product will meet the rigorous demands of modern portable electronics.
