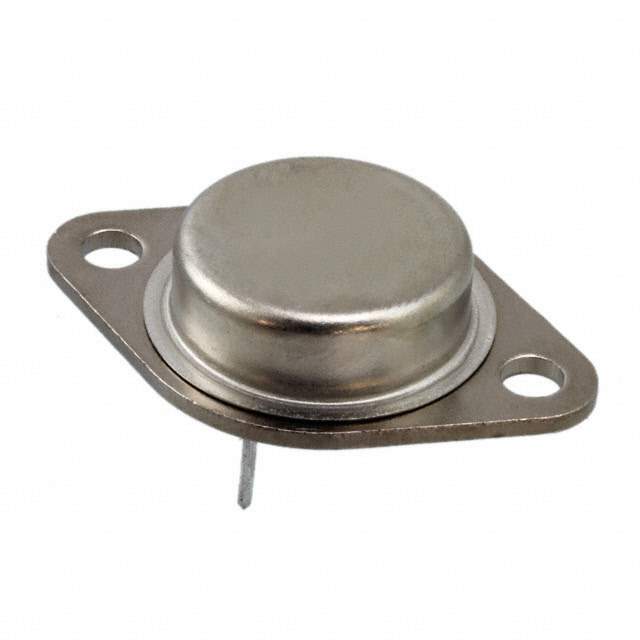

Product Overview: JANTX2N6650 from Microchip Technology

The JANTX2N6650 is a high-quality, military-standard N-channel MOSFET brought to you by Microchip Technology, a leader in the field of smart, connected, and secure embedded control solutions. Designed to meet the stringent requirements of military applications, this MOSFET is part of the JANTX series, which ensures that it has been rigorously tested to perform under extreme conditions.

Key Features

• Voltage Rating: The JANTX2N6650 is characterized by a drain-to-source voltage (Vdss) rating of 400V, making it suitable for high-voltage applications.
• Current Capacity: It can handle a continuous drain current (Id) of up to 18A, ensuring robust performance for a wide range of power requirements.
• Power Dissipation: With a total power dissipation (Pd) of 150W, this MOSFET can manage significant amounts of power, making it ideal for power-hungry circuits.
• RDS(on): The device features a low on-state resistance, which minimizes energy loss and improves efficiency during operation.
• Operating Temperature: It is designed to operate over a military temperature range, ensuring reliability from -55°C to +150°C.

Applications

The JANTX2N6650 is versatile and can be used in a variety of military and aerospace applications where high reliability is paramount. These include:

• Switching power supplies
• Motor controls
• Inverters
• Power management systems

Quality and Reliability

As a JANTX level product, the 2N6650 MOSFET complies with the MIL-PRF-19500/543 specification, ensuring that it meets the requirements for high-reliability electronic components used in military applications. This includes passing stringent environmental and mechanical stress testing, as well as detailed electrical parameter assessments.

Conclusion

Microchip Technology's JANTX2N6650 is a testament to their commitment to providing top-tier components that meet the exacting standards of military-grade equipment. With its robust electrical characteristics and proven reliability, this MOSFET is an excellent choice for designers looking for performance and durability in harsh environments.
