Same model may have multiple batches, images only for reference.

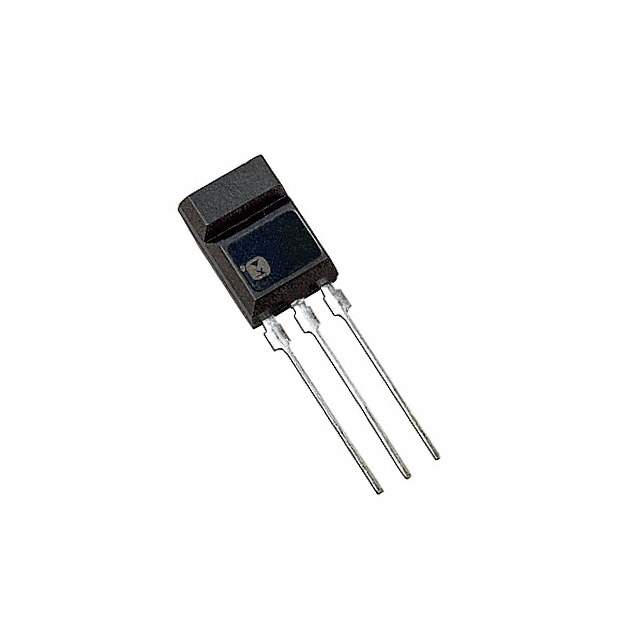

2SB1416 Real Image
Same model may have multiple batches, images only for reference.

2SB1416

Part No 2SB1416
Manufacturer Panasonic
Catalog Transistors (BJT) - Single
Description Silicon PNP epitaxial planar type
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

RoHS State Request Verification
Manufacturer Panasonic
Win Source Part Number 1124888-2SB1416
Manufacturer Homepage www.panasonic.com/industrial/
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 2SB1416 CAD Model

Description

The 2SB1416 is a PNP power transistor designed for high-voltage, high-current applications.

  • Maximum Collector-Emitter Voltage: 150 V
  • Maximum Collector Current: 10 A
  • Package: TO-220F
  • Collector-Emitter Saturation Voltage: 0.5 V
