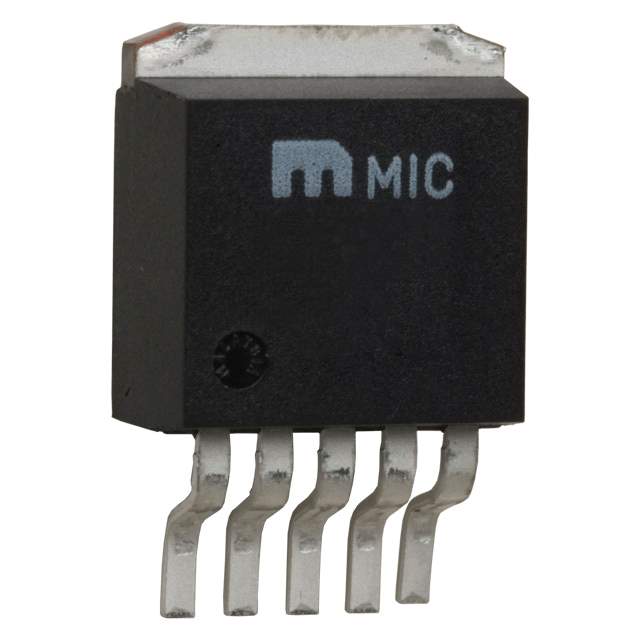

MIC5209-3.3YU

Part No MIC5209-3.3YU
Manufacturer Microchip Technology
Catalog PMIC - Voltage Regulators - Linear
Description 500mA Low-Noise LDO Regulator | IC REG LINEAR 3.3V 500MA TO263-5
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Microchip Technology
Packaging Tube
Output Type Fixed
Voltage - Input (Maximum) 16V
Min/Fixed Output Voltage 3.3V
Maximum Dropout Voltage 0.6V at 500mA
Output Current 500mA
Current - Quiescent (Iq) 170ÎĽA
Maximum Supply Current 25mA
PSRR 75dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature, Reverse Polarity
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Manufacturer Package TO-263-6, D2Pak (5 Leads + Tab), TO-263BA
Supplier Device Package TO-263-5
Family Part Number MIC5209
Manufacturer Pack Quantity 50
MSL Level 3 (168 Hours)
Win Source Part Number 1222708-MIC5209-3.3YU
Manufacturer Homepage www.micrel.com
Popularity Medium
Supply and Demand Status Limited

Description

The MIC5209-3.3YU is a highly efficient linear voltage regulator designed and manufactured by Microchip Technology, a leading provider of microcontroller and analog semiconductors. This regulator is specifically engineered to deliver a fixed output voltage of 3.3V, making it an ideal component for a wide range of electronic applications that require a stable and reliable power source.

Key Features

  • Output Voltage: Fixed at 3.3V, which is commonly used in digital circuits and microcontroller-based systems.
  • High Current Capability: Capable of delivering up to 500mA of output current, suitable for powering a variety of devices.
  • Low Dropout Voltage: Boasts a low dropout voltage, ensuring efficient operation even when the input voltage is close to the output voltage.
  • Thermal Overload Protection: Integrated thermal overload protection safeguards the device from damage caused by excessive heat.
  • Short-Circuit Protection: Features short-circuit protection to prevent damage to the regulator and the connected load in case of a fault.
  • Low Noise Performance: Designed to minimize output noise, making it suitable for noise-sensitive applications such as audio or RF circuits.
  • Stable with Ceramic Capacitors: Stable with low-ESR output capacitors, including ceramic types, for improved performance and reliability.

Applications

The MIC5209-3.3YU is versatile and can be used in numerous applications, including:

  • Battery-powered devices
  • Portable electronics
  • Microcontroller power supplies
  • Peripheral power supplies
  • Reference voltage sources

Package and Availability

This voltage regulator comes in a TO-220-3 package, known for its ease of handling and robustness. It is widely available through Microchip Technology's distribution channels and is supported with comprehensive technical documentation.

For designers and engineers looking for a reliable power management solution, the MIC5209-3.3YU offers a blend of performance, efficiency, and protection features that make it an excellent choice for a broad array of electronic systems.
