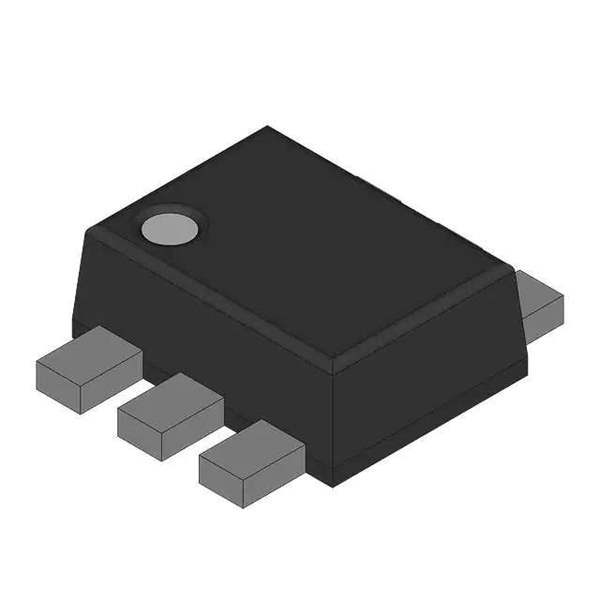

The PEMD9 is a resistor-equipped transistor (RET) primarily designed for reducing component count and board space in various electronic applications. It integrates a PNP transistor with two integrated resistors, offering a simplified solution for biasing and digital control. This device comes in a small SOT363 (SC-88) Surface-Mounted Device (SMD) plastic package.

Applications:

• Digital applications where space is constrained
• Inverters
• Switching circuits
• Bias resistors
• Driver circuits

Features:

• Built-in bias resistors: Reduces component count and simplifies circuit design.
• Small SOT363 package: Minimizes board space requirements.
• PNP transistor: Offers versatile switching and amplification capabilities.
• Reduces pick and place costs
• Simplifies circuit design

Benefits:

• Cost-effective: Integration of resistors and transistor reduces overall component cost.
• Space-saving: Compact package allows for high-density circuit designs.
• Simplified design: Integrated resistors eliminate the need for external biasing resistors.
• Improved reliability: Fewer components result in fewer solder joints and potential failure points.
• Faster assembly: Reduced component count speeds up the assembly process.

Additional Details:

The PEMD9 features two integrated resistors, R1 and R2, that are internally connected. It has a typical R1 value of 1 kΩ and R2 value of 10 kΩ. The transistor itself has specific characteristics such as a collector current (Ic) rating, voltage ratings (Vceo, Vcbo, Vebo), and power dissipation limits. These parameters are detailed in the product datasheet and are critical for proper circuit design and operation. The SOT363 package is industry-standard and offers good thermal performance for its size. The device is lead-free and RoHS compliant, adhering to environmental regulations.

The PEMD9's characteristics make it suitable for a variety of applications where a pre-biased transistor is beneficial in minimizing component count and simplifying the circuit design process. Engineers can leverage the integrated resistors to eliminate external biasing components, resulting in a cleaner, more efficient circuit layout, especially in densely populated printed circuit boards.
