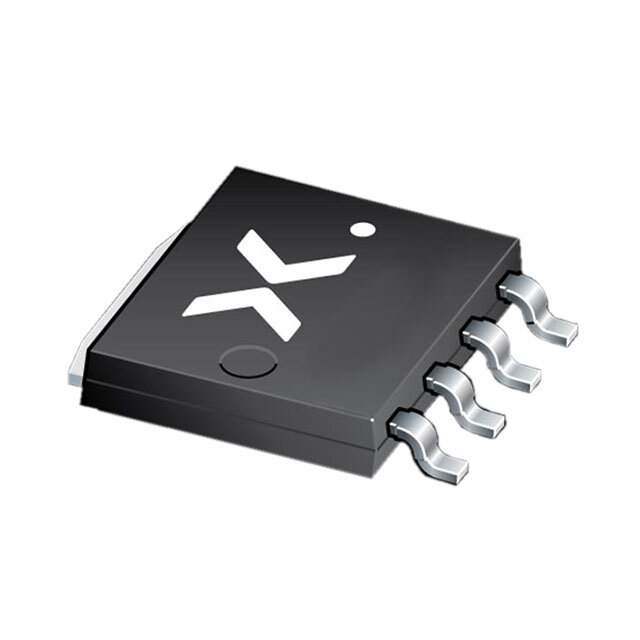

PSMN1R0-40YSHX Real Image
Same model may have multiple batches, images only for reference.

PSMN1R0-40YSHX

Part No PSMN1R0-40YSHX
Manufacturer Nexperia USA Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 40V 290A LFPAK56 / N-Channel 40 V 290A (Ta) 333W (Ta) Surface Mount LFPAK56; Power-SO8
Datasheet
PSMN1R0-40YSHX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Nexperia USA Inc.
Package Tape & Reel
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 40 V
Current - Continuous Drain (Id) @ 25°C 290A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 1mOhm @ 25A, 10V
Vgs(th) (Max) @ Id 3.6V @ 1mA
Gate Charge (Qg) (Max) @ Vgs 122 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 9433 pF @ 20 V
FET Feature Schottky Diode (Body)
Power Dissipation (Max) 333W (Ta)
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting SMD (SMT)
Supplier Device Package LFPAK56; Power-SO8
Package / Case SOT-1023, 4-LFPAK
Base Product Number PSMN1R0
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names 934660722115,1727-8709-6,1727-8709-2,1727-8709-1
Standard Package 1,500
Win Source Part Number 1157356-PSMN1R0-40YSHX
Ultra Librarian 3D Model Ultra Librarian PSMN1R0-40YSHX CAD Model

Description

Nexperia USA Inc. PSMN1R0-40YSHX MOSFETs are high-performance components that are used in a wide range of applications.

  • Model: 1157356-PSMN1R0-40YSHX
  • Mounting: Surface-mount device
  • Features: High power output and low on-resistance, Schottky diode
  • Gate Charge: 122 nC @ 10 V
  • Application: Ideal for use in power supplies, motor controllers, and other high-power applications.
