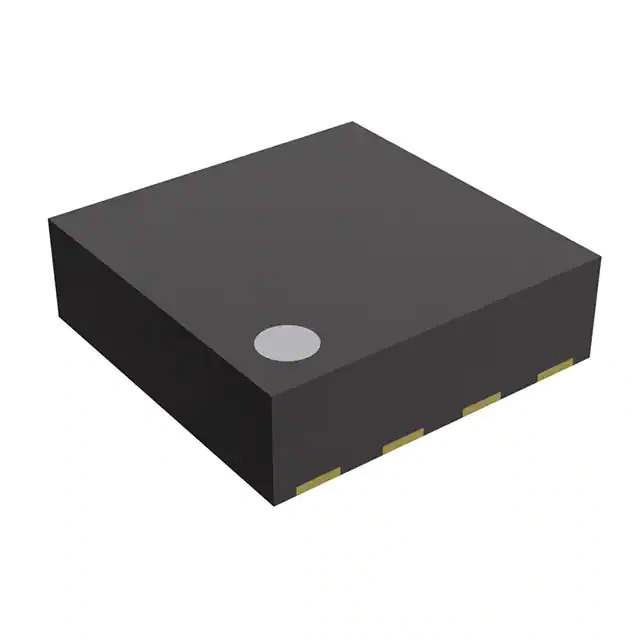

RP150K011B-TR Real Image
Same model may have multiple batches, images only for reference.

RP150K011B-TR

Part No RP150K011B-TR
Manufacturer Nisshinbo Micro Devices Inc.
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LIN 1.1V 300MA DFN2020-8
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Voltage Regulators - Linear
Mfr Nisshinbo Micro Devices Inc.
Series RP150K
Package Tape & Reel
Product Status Active
Output Configuration Positive
Output Type Fixed
Number of Regulators 2
Voltage - Input (Max) 5.25V
Voltage - Output (Min/Fixed) 1.1V
Current - Output 300mA, 300mA
Current - Quiescent (Iq) 33 µA
Control Features Enable
Protection Features Over Current
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 8-UFDFN Exposed Pad
Supplier Device Package DFN(PL)2020-8
Base Product Number RP150
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 298398-RP150K011B-TR
Ultra Librarian 3D Model Ultra Librarian RP150K011B-TR CAD Model

Description

The RP150K011B-TR is a voltage regulator from Nisshinbo Micro Devices Inc. It is a part of the RP150K series in the category of Integrated Circuits - Power Management - Voltage Regulators - Linear.

  • Package: Tape and reel
  • Standard Package: 5,000 pieces
  • Number of Regulators: 2
  • Output Type: Fixed
  • Voltage Input: 0V to 5.25V
  • Voltage Output: Fixed @ 1.1V
  • Mounting Type: Surface Mountable
  • Package: 8-UFDFN Exposed Pad
  • Operating Temperature: -40°C to 85°C
  • Over Current Protection: Yes
  • Current Quiescent: 33μA
