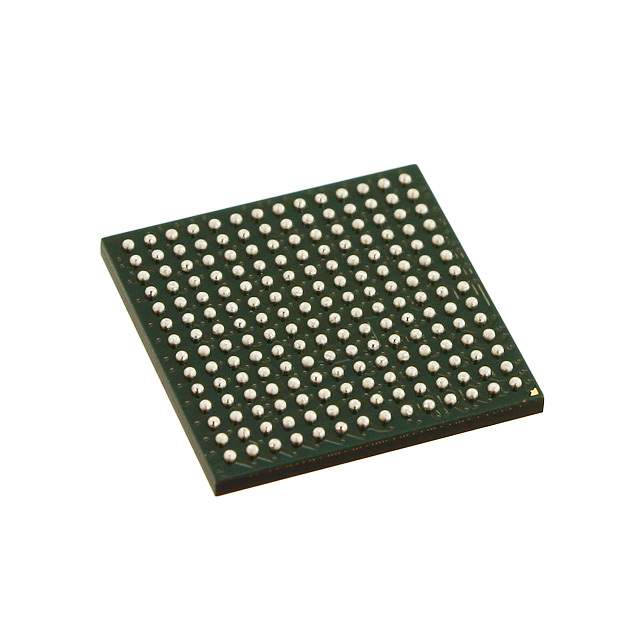

Product Overview: NXP DSP56303VF100R2

The NXP DSP56303VF100R2 is a high-performance digital signal processor (DSP) designed for a wide range of applications that require sophisticated signal processing capabilities. This processor is part of NXP's DSP563xx family, known for its efficient processing of audio, telecommunications, and control algorithms.

Key Features:

• High-Speed Performance: The DSP56303VF100R2 operates at a core frequency of 100 MHz, delivering the computational power needed for complex algorithms and real-time processing requirements.
• 24-Bit DSP Core: Featuring a 24-bit modified Harvard architecture, this DSP provides a high level of precision for audio and control applications, ensuring accurate signal manipulation and analysis.
• Integrated Memory: It comes equipped with on-chip memory, including 2KB of program RAM and 2KB of data RAM, facilitating fast and efficient data handling.
• Peripheral Set: A range of integrated peripherals enhances the functionality of the DSP56303VF100R2, including serial ports, a host interface, timers, and a parallel interface, among others.
• Low Power Consumption: Designed with power efficiency in mind, this DSP is ideal for battery-powered and portable devices where power conservation is critical.
• Package: The device is available in a 144-pin LQFP (Low Profile Quad Flat Package), which is suitable for space-constrained applications.

Applications:

The versatility of the NXP DSP56303VF100R2 makes it suitable for a variety of applications, including:

• Professional and consumer audio processing
• Telecommunications systems
• Instrumentation and control
• Automotive audio and control systems
• Voice recognition and processing

Support and Resources:

NXP provides extensive support for the DSP56303VF100R2, including technical documentation, development tools, and software libraries. These resources are designed to help developers accelerate the design process and bring products to market faster.

In summary, the NXP DSP56303VF100R2 is a powerful and versatile digital signal processor that offers a balance of performance, integrated features, and power efficiency, making it an excellent choice for a wide range of signal processing applications.
