The NXP LD6805K/18H is a high-performance, low-dropout voltage regulator designed to deliver a stable and efficient power supply. This compact and reliable component is ideal for a wide range of applications, from consumer electronics to automotive systems. Its low dropout voltage ensures efficient operation even in low-voltage environments, making it an excellent choice for battery-powered devices.

Key Features

• Output Voltage: This device provides a fixed output voltage of 1.8V, which is ideal for powering sensitive electronic circuits that require a stable power source.
• High Accuracy: The LD6805K/18H offers an impressive accuracy of ±2%, ensuring that your devices operate reliably within their specified voltage ranges.
• Low Dropout: With a very low dropout voltage, this regulator maintains its output voltage even when the input voltage is close to the output voltage, enhancing the efficiency of your power management system.
• Current Capability: It is capable of supplying up to 150 mA of continuous output current, suitable for a variety of low-power applications.
• Thermal Protection: The built-in thermal protection feature prevents the device from overheating, thereby ensuring a longer operational lifespan.

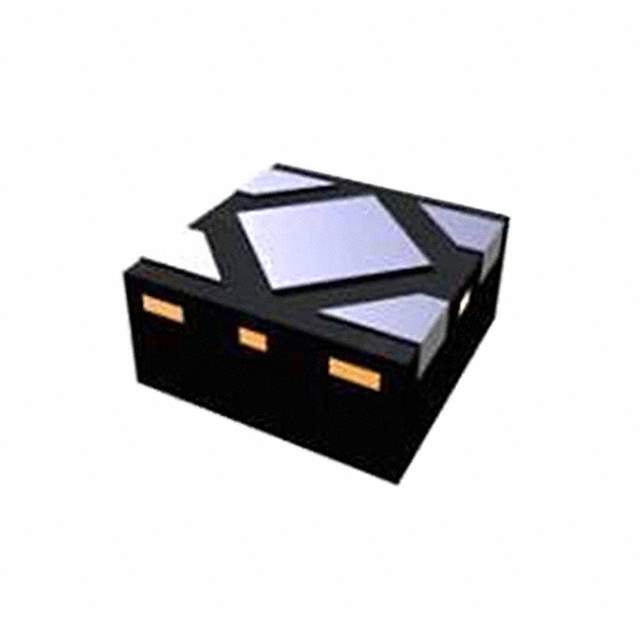

• Small Form Factor: The LD6805K/18H comes in a small 5-pin SOT-23 package, which is perfect for space-constrained applications.

Applications

The NXP LD6805K/18H is versatile enough to be used in a plethora of applications, including:

• Mobile phones and personal media players
• Portable gaming devices
• Wireless communication systems
• GPS receivers
• Healthcare monitoring devices
• Automotive modules

Conclusion

With its combination of low dropout performance, high accuracy, and compact size, the NXP LD6805K/18H voltage regulator is an excellent power management solution for any application requiring a reliable and efficient power supply. Its robust feature set ensures that your devices perform optimally, even under varying power conditions.
