The MRF5S4125NR1 is a high-performance RF power transistor from NXP Semiconductors, designed to deliver exceptional power and efficiency for a wide range of applications. This device is part of NXP's renowned MRFS series, which is known for its robustness and reliability in demanding environments.

Key Features

• Frequency Range: Specifically designed for broadband applications, the MRF5S4125NR1 operates effectively within the 450-520 MHz frequency range.
• Output Power: With a high output power of 125 Watts, this transistor is capable of delivering significant power for its size, making it ideal for high-power amplifiers.
• Gain: It provides a high gain of 18 dB, ensuring that signal strength is maintained or enhanced when amplifying RF signals.
• Efficiency: The MRF5S4125NR1 has an excellent efficiency of 60%, minimizing power loss and heat generation during operation.
• Integrated ESD Protection: Built-in electrostatic discharge protection safeguards the device from unexpected voltage spikes, enhancing its durability.
• Thermal Performance: The transistor's superior thermal performance is ensured by its advanced design, which allows for effective heat dissipation.

Applications

The MRF5S4125NR1 is well-suited for a variety of applications that require high power and efficiency. These applications include, but are not limited to:

• Commercial and public safety radio systems
• Professional mobile radio (PMR) base stations
• Industrial, scientific, and medical (ISM) applications
• Broadband RF power amplifiers

Quality and Reliability

NXP Semiconductors is committed to delivering products that meet the highest standards of quality and reliability. The MRF5S4125NR1 is manufactured using state-of-the-art processes and is rigorously tested to ensure it meets these standards. Customers can trust this device to perform consistently in even the most challenging conditions.

Package and Support

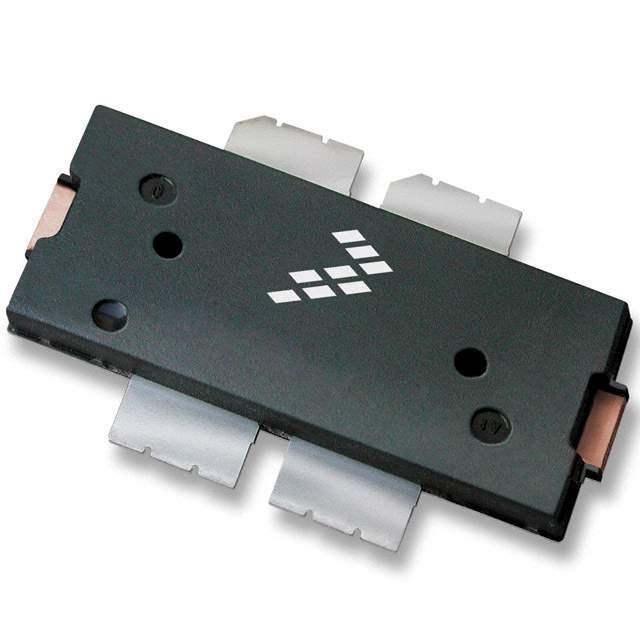

The MRF5S4125NR1 comes in a TO-270-2 plastic package, which is designed for optimal electrical and thermal performance. NXP provides comprehensive technical support for this product, including detailed datasheets, application notes, and design resources to assist with integration and optimization.
