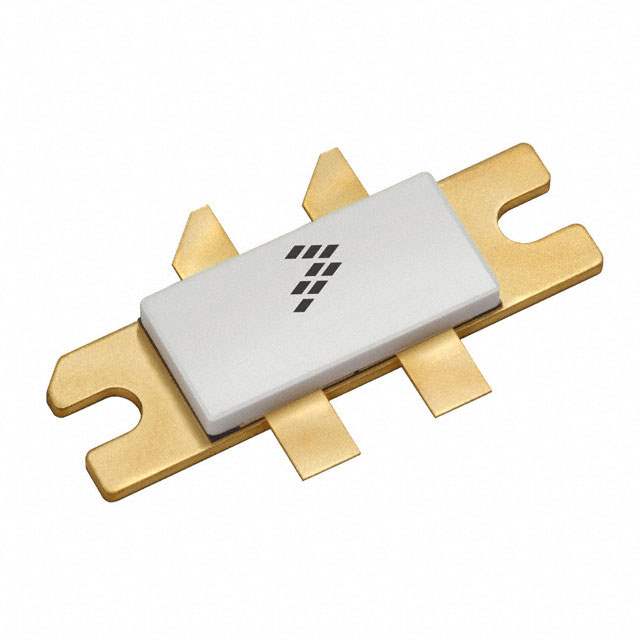

MRFE6VP100HR5

Part No MRFE6VP100HR5
Manufacturer NXP / Nexperia
Catalog Transistors - FETs, MOSFETs - RF
Description RF MOSFET LDMOS 50V NI780-4
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - RF FETs, MOSFETs
Mfr NXP
Package Tape & Reel
Product Status Active
Technology LDMOS
Frequency 512MHz
Gain 26dB
Voltage - Test 50 V
Current - Test 100 mA
Power - Output 100W
Voltage - Rated 133 V
Mounting Type Chassis Mount
Package / Case NI-780-4
Supplier Device Package NI-780-4
Base Product Number MRFE6
Standard Package 50 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 644273-MRFE6VP100HR5
Ultra Librarian 3D Model Ultra Librarian MRFE6VP100HR5 CAD Model

Description

The NXP MRFE6VP100HR5 is a state-of-the-art RF power LDMOS transistor designed to deliver outstanding performance for a wide range of high-power applications. This robust transistor is capable of operating at frequencies up to 600 MHz, making it an ideal component for industrial, scientific, medical (ISM) applications, as well as for radio and VHF TV broadcast transmitters.

Key Features:

  • High Output Power: The MRFE6VP100HR5 offers a high output power of up to 100 Watts CW over the entire frequency range, ensuring strong signal transmission for your application.
  • Wide Frequency Range: With an operational frequency range of 1.8-600 MHz, this versatile transistor can be used in a variety of high-frequency applications.
  • High Efficiency: Designed with efficiency in mind, the MRFE6VP100HR5 achieves up to 70% efficiency, reducing energy consumption and heat generation.
  • Ruggedness: The transistor is capable of withstanding a 65:1 VSWR (Voltage Standing Wave Ratio) at 50V, ensuring durability and reliability even under mismatched load conditions.
  • Integrated ESD Protection: The built-in electrostatic discharge protection enhances the reliability of the device, safeguarding it against sudden voltage spikes.
  • Thermally Enhanced Package: The MRFE6VP100HR5 is housed in a ceramic package that offers excellent thermal stability and conductivity, which helps in maintaining performance even under high-temperature operations.

Applications:

  • Industrial, Scientific, and Medical (ISM) Applications
  • Radio Broadcast
  • VHF Television Broadcast
  • Aerospace and Defense
  • Large Signal, Broadband Amplifiers

Whether you're developing high-power amplifiers for broadcast equipment or rugged applications for aerospace and defense, the NXP MRFE6VP100HR5 provides the power, efficiency, and reliability you need. Its superior performance and integrated features make it a go-to choice for engineers and designers looking to push the boundaries of RF power amplification.
