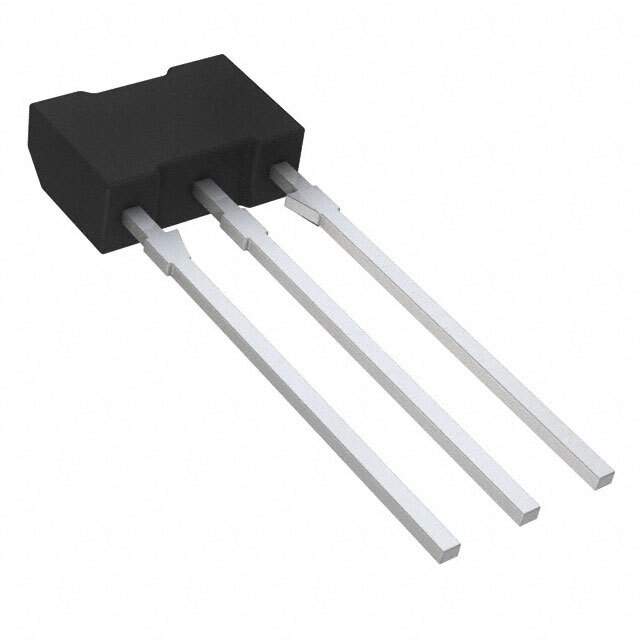

The 2SA1706-T is a high-quality PNP transistor from ON Semiconductor, a leading provider in the semiconductor industry. This versatile component is designed for general-purpose amplifier and switching applications, offering reliable performance and efficiency. With its PNP configuration, the 2SA1706-T is commonly used in electronic circuits where a positive voltage needs to be controlled by a lower voltage signal.

Key Features

• PNP Bipolar Junction Transistor: This device is a PNP transistor, which means it is controlled by a negative current and is used primarily for amplifying or switching positive charges.
• High Current Capability: The 2SA1706-T can handle a continuous collector current up to 2 A, making it suitable for moderate power applications.
• Low Saturation Voltage: It has a low collector-emitter saturation voltage, which helps in reducing power loss and improving efficiency when the transistor is in the on-state.
• High Power Dissipation: With a power dissipation of 900 mW, this transistor can withstand higher energy levels before overheating, ensuring durability and stable performance.
• Complementary NPN Type Available: For applications requiring a complementary NPN transistor, ON Semiconductor offers a counterpart that pairs well with the 2SA1706-T.

Applications

The 2SA1706-T is suitable for a wide range of applications, including but not limited to:

• Audio amplifiers and sound reinforcement devices.
• Signal processing and conditioning circuits.
• Power management systems.
• Switching regulators and power converters.
• Motor control circuits.

Quality and Reliability

ON Semiconductor is committed to delivering high-quality products. The 2SA1706-T is manufactured with the company's stringent quality control processes, ensuring reliable operation and longevity in your electronic designs. Whether you're developing consumer electronics or industrial systems, the 2SA1706-T offers the performance and dependability you can trust.
