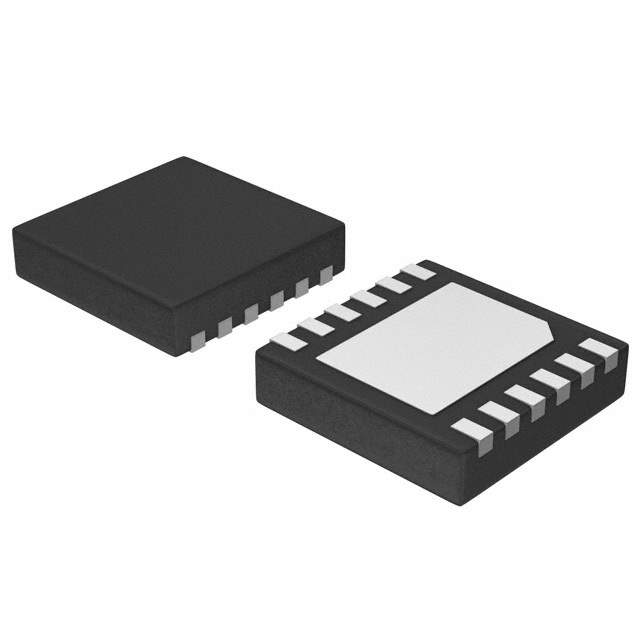

The CAT3612HV2-GT2 from ON Semiconductor is a high-efficiency, charge pump-based LED driver designed to power multiple LEDs in portable devices. With its compact design and advanced features, it is particularly suitable for battery-powered applications where space and power efficiency are critical.

Key Features:

• Output Configuration: The device supports up to six LEDs with a 1x/1.5x/2x fractional charge pump, ensuring consistent brightness and efficient power use across varying battery voltages.
• High Efficiency: It operates with a typical efficiency of up to 90%, which helps to maximize battery life in portable applications.
• Low Noise Operation: The CAT3612HV2-GT2 employs a switching frequency of 1MHz, which minimizes noise and allows for the use of small external components.
• Dimming Control: Integrated dimming control enables precise brightness control, which is essential for applications requiring variable light output.
• Protection Features: The device includes built-in thermal shutdown and over-current protection, enhancing the safety and reliability of the end product.

Applications:

The CAT3612HV2-GT2 is ideal for a variety of portable devices, including:

• Mobile phones
• Personal digital assistants (PDAs)
• Digital cameras
• Portable media players

Technical Specifications:

• Input Voltage Range: 3V to 5.5V
• Output Current: Up to 30mA per LED
• Package: 16-pin TQFN
• Operating Temperature Range: -40°C to +85°C

The CAT3612HV2-GT2 is a versatile and efficient solution for driving high-brightness LEDs in portable electronic devices. Its small form factor, combined with high efficiency and advanced features, makes it an excellent choice for designers looking to enhance the visual appeal of their products while maintaining optimal power consumption.
