ON Semiconductor FGA15N120ANTDTU IGBT Overview

The ON Semiconductor FGA15N120ANTDTU is a high-performance Insulated Gate Bipolar Transistor (IGBT) designed for a range of power applications. This IGBT combines the simple gate-drive characteristics of a MOSFET with the high-current and low-saturation-voltage capabilities of a bipolar transistor. It is an ideal choice for high-efficiency, fast-switching applications.

Key Features

• High Current Capability: The FGA15N120ANTDTU supports a continuous collector current of up to 15A, making it suitable for high-power applications.
• High Voltage Rating: With a collector-emitter voltage (Vce) rating of 1200V, this IGBT can handle high voltage operations, providing a margin for safety and reliability.
• Low Saturation Voltage: The device offers a low Vce(sat) of typically 2.3V, which minimizes conduction losses and improves overall efficiency.
• High-Speed Switching: It features fast switching characteristics with a typical fall time (tf) of just 210ns, contributing to reduced switching losses.
• Co-Packaged Free Wheeling Diode: The IGBT comes with an integrated anti-parallel diode, which provides protection during inductive switching and simplifies circuit design.

Applications

The FGA15N120ANTDTU is suited for a wide range of applications, particularly where efficiency and power density are critical. Typical applications include:

• Uninterruptible Power Supplies (UPS)
• Power Factor Correction (PFC) circuits
• Induction heating
• Motor drives and inverters
• Switch Mode Power Supplies (SMPS)

Package and Quality

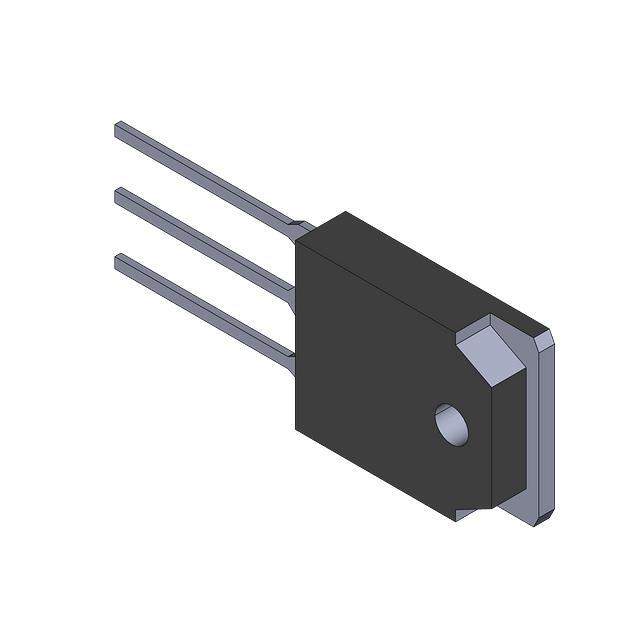

ON Semiconductor's FGA15N120ANTDTU comes in a TO-3PN package, which provides robust thermal performance and is suitable for through-hole mounting. The device is RoHS compliant, ensuring adherence to the latest environmental standards. ON Semiconductor is known for its commitment to quality, and this IGBT is no exception, meeting rigorous industry standards for performance and reliability.

Conclusion

The FGA15N120ANTDTU from ON Semiconductor represents a reliable and efficient solution for designers seeking a high-voltage, high-current IGBT with fast-switching capabilities. Its integrated features and robust package make it a versatile component for a broad spectrum of power applications.
