The ON Semiconductor NCP5612MUTBG is a highly efficient, integrated LED driver designed to meet the demands of portable and compact device illumination applications. This advanced driver is ideal for driving white LEDs with a constant current, ensuring consistent brightness and color temperature across various lighting conditions.

Key Features

• Input Voltage Range: The device operates on an input voltage range of 2.7V to 5.5V, making it suitable for battery-powered devices such as smartphones, tablets, and handheld gaming consoles.
• Output Current Regulation: It provides accurate and programmable LED current regulation via an I2C-compatible interface, allowing for precise control of the brightness levels.
• High Efficiency: The NCP5612MUTBG boasts a high efficiency of up to 92%, significantly reducing battery drain and heat generation within the device.

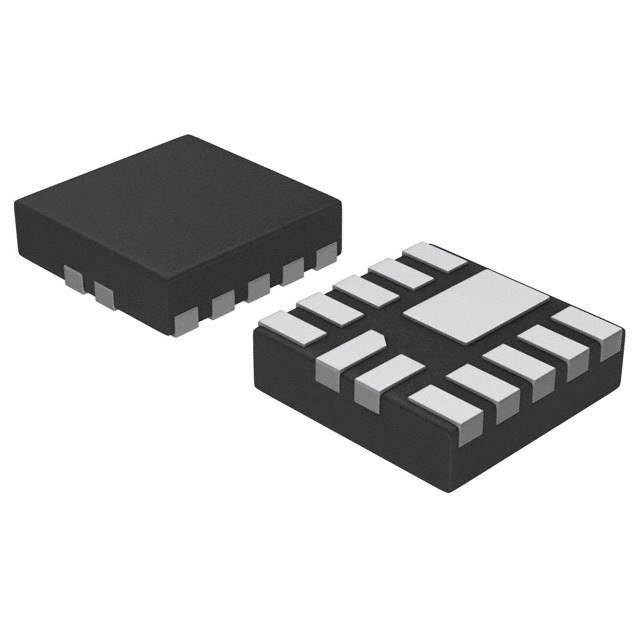

• Small Form Factor: Housed in a compact, space-saving 12-bump micro WLCSP package (1.2mm x 1.6mm x 0.4mm), this LED driver is perfect for applications where space is at a premium.
• Thermal Protection: It features an integrated thermal shutdown mechanism that protects the device and the LEDs from overheating, enhancing the overall reliability and lifespan of the application.

Applications

The NCP5612MUTBG is versatile and can be used in a variety of applications that require efficient and controlled LED illumination. These include:

• Backlighting for LCD displays in portable devices
• Keypad illumination for mobile phones and remote controls
• General LED lighting in compact spaces
• Indicator and status lights for consumer electronics

Conclusion

ON Semiconductor's NCP5612MUTBG LED driver is a top-of-the-line solution for designers looking to enhance the visual experience of their portable devices with efficient, controlled, and consistent LED lighting. Its high efficiency, programmability, and compact size make it an excellent choice for a wide range of applications.
