The ON Semiconductor NSBC124EDP6T5G represents a high-performance NPN bipolar transistor, meticulously designed for applications requiring efficient amplification and fast switching. This device is an essential component for modern electronic systems, offering a blend of reliability, compactness, and power efficiency.

Key Features

• Transistor Type: NPN - This type of transistor is well-suited for high-speed switching and amplification, making it a versatile choice for a wide range of electronic circuits.

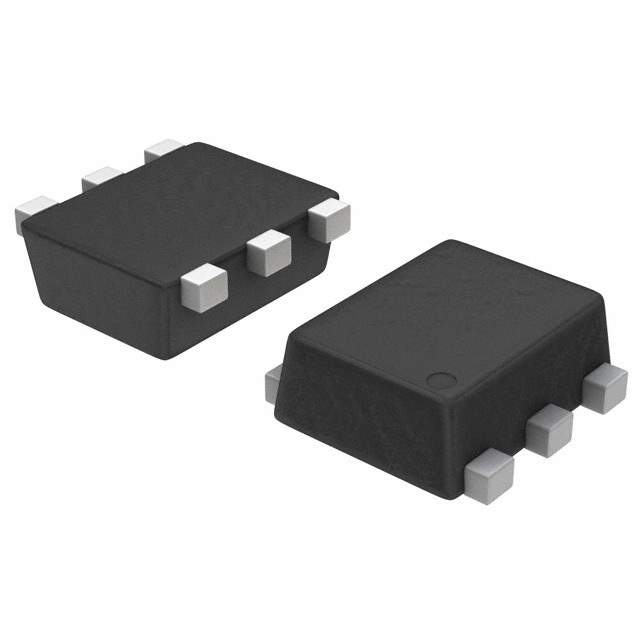

• Package: The NSBC124EDP6T5G comes in a compact SOT-963 package, which is ideal for space-constrained applications.
• Collector-Emitter Voltage (VCEO): It supports a maximum collector-emitter voltage of 50V, providing a good balance between performance and robustness for various circuit designs.
• Collector Current (IC): The maximum collector current is 100mA, which allows the transistor to handle moderate power levels while maintaining its efficiency.
• DC Current Gain (hFE): With a high DC current gain, this transistor can amplify weak signals without significant power loss, ensuring signal integrity in analog circuits.
• Transition Frequency (fT): The NSBC124EDP6T5G boasts a transition frequency of 250MHz, enabling quick response times and high-frequency operation in applications such as RF amplifiers.
• Power Dissipation (Pd): It has a power dissipation of 200mW, allowing it to handle a reasonable amount of power without overheating.
• RoHS Compliant: The device adheres to RoHS standards, ensuring that it is manufactured without the use of hazardous substances, making it environmentally friendly.

Applications

The NSBC124EDP6T5G is suitable for a diverse range of applications, including but not limited to:

• Signal amplification in audio and video equipment
• Switching circuits in power management systems
• Driver stages in amplifiers and oscillators
• General-purpose switching and amplification in consumer electronics
• RF applications requiring high-frequency performance

Overall, the NSBC124EDP6T5G from ON Semiconductor is a reliable and efficient choice for designers looking to optimize their electronic circuits with a robust NPN bipolar transistor.
