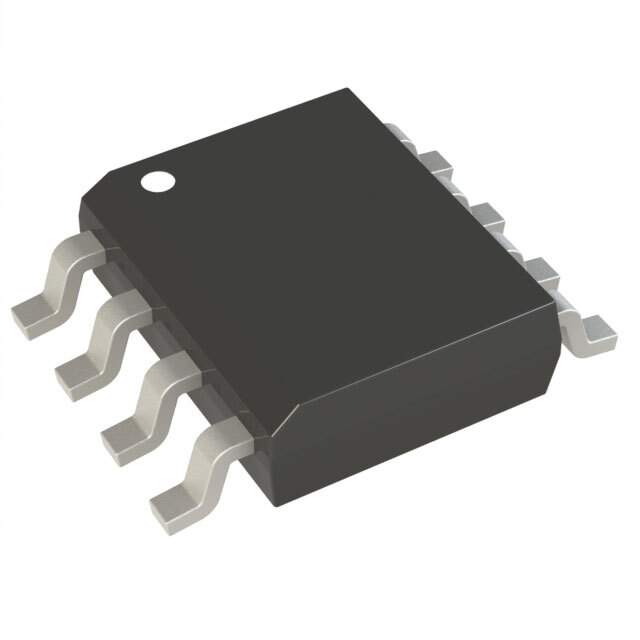

SI4196DY-T1-E3

Name: SI4196DY-T1-E3
Brand: Vishay
SKU: 1277522
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	SI4196DY-T1-E3
Manufacturer	Vishay
Catalog	Transistors - FETs, MOSFETs - RF
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Vishay Siliconix
Series	TrenchFET®
Package	Tape & Reel (TR)
Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	8A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	27mOhm @ 8A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	22 nC @ 8 V
Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	830 pF @ 10 V
Power Dissipation (Max)	2W (Ta), 4.6W (Tc)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	SMD (SMT)
Supplier Device Package	8-SOIC
Package / Case	8-SOIC (0.154", 3.90mm Width)
Base Product Number	SI4196
Standard Package	2,500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	1277522-SI4196DY-T1-E3
Ultra Librarian 3D Model	Ultra Librarian SI4196DY-T1-E3 CAD Model

Alternative Products

Description

The SI4196DY-T1-E3 is a N-channel MOSFET transistor from Vishay Siliconix.

Series: TrenchFET
Drain to Source Voltage (Vdss): 20 V
Continuous Drain Current (Id): 8A @ 25°C
Maximum On-Resistance (Rds On): 27mOhm @ 4.5V Vgs and 8A Id
Gate Charge (Qg): 22 nC @ 8V Vgs
Input Capacitance (Ciss): 830 pF @ 10 V Vds
Maximum Vgs: ±8V
Operating Temperature Range: -55°C to 150°C
Package Type: 8-SOIC
