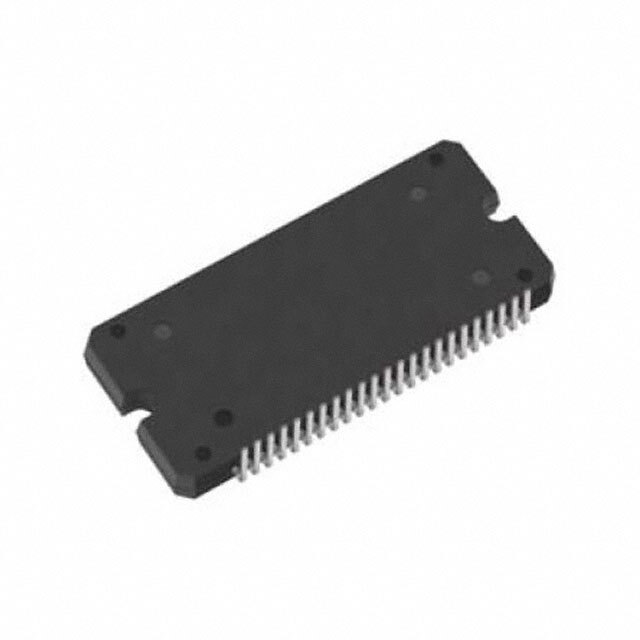

ON Semiconductor STK984-090A-E Intelligent Power Module

The ON Semiconductor STK984-090A-E is a sophisticated intelligent power module designed to deliver high-efficiency power control in a compact package. This module is specifically engineered to cater to the demanding requirements of advanced motor drive applications, such as those found in automotive and industrial settings.

Key Features

• Integrated Design: The STK984-090A-E combines power elements, gate drive, and protection circuitry in a single package, simplifying design and reducing external components.
• High Voltage and Current Rating: With a voltage rating of 40V and a 90A current capability, this module is well-suited for handling robust applications.
• Low RDS(on): The low on-resistance ensures high efficiency and minimal heat generation during operation.
• Over-Temperature Protection: The built-in temperature sensing and protection features prevent damage from overheating, enhancing the module's reliability and lifespan.
• Self-Protection Features: The module includes under-voltage lockout, over-current protection, and short-circuit protection, ensuring safe operation under various conditions.

Applications

The STK984-090A-E is ideal for a range of applications that require precise and efficient power control, including:

• Electric and Hybrid Electric Vehicle Motor Drives
• Industrial Motor Control Systems
• High-Performance Power Inverters
• Renewable Energy Systems (e.g., Solar Inverters, Wind Turbine Converters)

Product Summary

The ON Semiconductor STK984-090A-E represents a leap forward in intelligent power module technology. Its integration of multiple functionalities into a single unit not only streamlines the design process but also improves system performance. The module's high voltage and current ratings, coupled with its comprehensive protection features, make it a reliable choice for engineers looking to enhance the efficiency and durability of their motor drive systems. Whether it's for automotive, industrial, or renewable energy applications, the STK984-090A-E delivers the power and performance needed for today's demanding environments.
