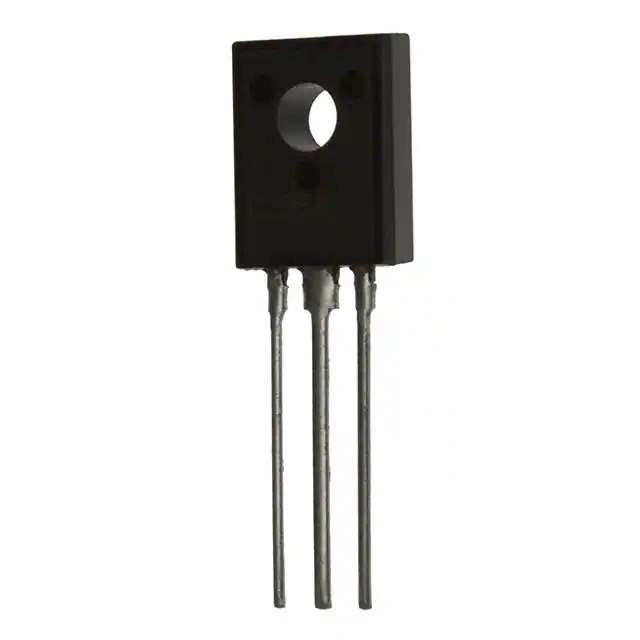

2SA11100Q Real Image
Same model may have multiple batches, images only for reference.

2SA11100Q

Part No 2SA11100Q
Manufacturer Panasonic
Catalog Transistors (BJT) - Single
Description TRANS PNP 120V 0.5A TO126B-A1
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - Bipolar (BJT) - Single Bipolar Transistors
Mfr Panasonic
Package Bulk
Product Status Obsolete
Transistor Type PNP
Current - Collector (Ic) (Max) 500 mA
Voltage - Collector Emitter Breakdown (Max) 120 V
Vce Saturation (Max) @ Ib, Ic 1V @ 30mA, 300mA
DC Current Gain (hFE) (Min) @ Ic, Vce 90 @ 150mA, 10V
Power - Max 1.2 W
Frequency - Transition 200MHz
Temperature Range - Operating 150°C (TJ)
Mounting Type Through Hole
Package / Case TO-225AA, TO-126-3
Supplier Device Package TO-126B-A1
Base Product Number 2SA111
Standard Package 1,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0075
Win Source Part Number 855019-2SA11100Q
Ultra Librarian 3D Model Ultra Librarian 2SA11100Q CAD Model

Description

The 2SA11100Q is a PNP bipolar transistor designed for discrete semiconductor applications. It has a maximum power rating of 1.2W and a collector-emitter breakdown voltage of 120V.

  • Maximum Collector Current: 500mA
  • Vce Saturation: 1V @ 30mA and 300mA
  • Frequency Transition: 200MHz
  • Package: TO-225AA and TO-126-3 packages
  • Mounting Options: Through-Hole
  • Manufacturer: Panasonic
