Same model may have multiple batches, images only for reference.

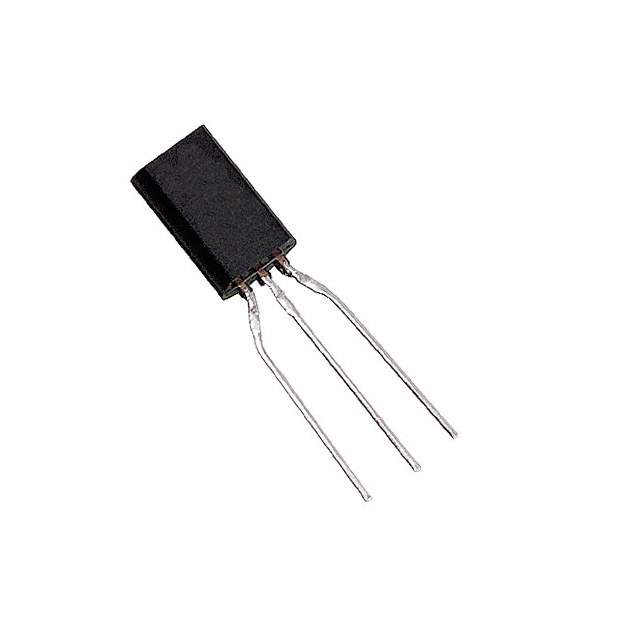

2SC1573BQ Real Image
Same model may have multiple batches, images only for reference.

2SC1573BQ

Part No 2SC1573BQ
Manufacturer Panasonic
Catalog Transistors (BJT) - Single
Description TRANS NPN 400V 0.07A TO-92L
Datasheet
2SC1573BQ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Bulk
Part Status Obsolete(EOL)
Transistor Type NPN
Current - Collector (Ic) (Maximum) 70mA
Voltage - Collector Emitter Breakdown (Maximum) 400V
Vce Saturation (Maximum) @ Ib, Ic 1.2V @ 5mA, 50mA
Current - Collector Cutoff (Maximum) 10μA (ICBO)
DC Current Gain (hFE) (Minimum) @ Ic, Vce 60 @ 5mA, 10V
Power - Max 1W
Frequency - Transition 80MHz
Operating Temperature Range 150°C (TJ)
Mounting Style Through Hole
Package TO-226-3, TO-92-3 Long Body
Manufacturer Package TO-92L-A1
Win Source Part Number 762546-2SC1573BQ
Popularity Medium
Supply and Demand Status Balance
Family Name 2SC1573BQ
Introduction Date October 08, 1998
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian 2SC1573BQ CAD Model

Description

The 2SC1573BQ from Panasonic Electronic Components is a through-hole mounting style transistor with a TO-226-3 and TO-92-3 long body package.

  • Power-max: 1W
  • Frequency Transition: 80MHz
  • Transistor Type: NPN
  • Current Collector (Ic) (maximum): 70mA
  • Voltage collector-emitter breakdown (maximum): 400V
  • Vce saturation (maximum) @ Ib, Ic: 1.2V @ 5mA, 50mA
  • Current Collector Cutoff (maximum): 10μA (ICBO)
  • DC Current Gain (hFE) (minimum) @ Ic, Vce: 60 @ 5mA, 10V
  • Estimated EOL date: Obsolete

The supply and demand status of the product is balanced.
