Same model may have multiple batches, images only for reference.

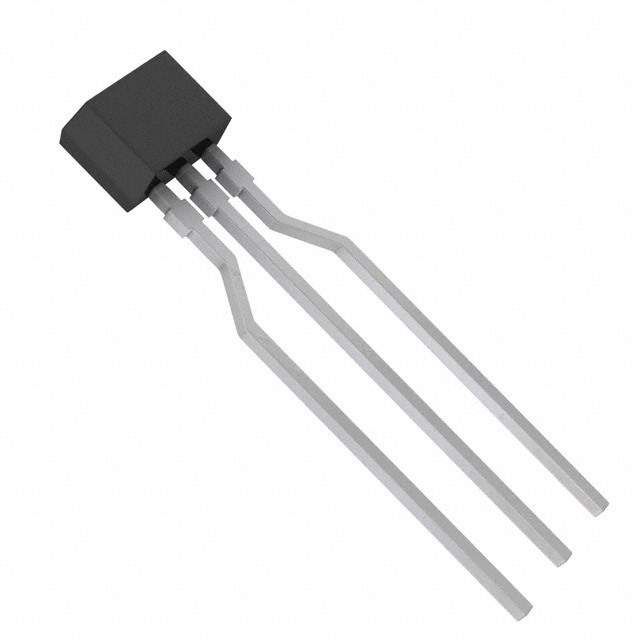

2SD14500SA Real Image
Same model may have multiple batches, images only for reference.

2SD14500SA

Part No 2SD14500SA
Manufacturer Panasonic
Catalog Transistors (BJT) - Single
Description TRANS NPN 20V 0.5A NS-B1
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Features Bipolar (BJT) Transistor NPN 20 V 500 mA 200MHz 300 mW Through Hole NS-B1
Manufacturer Panasonic
Package Cut Tape (CT), Tape & Box (TB)
Part Status Obsolete
Operating Temperature Range 150°C (TJ)
Mounting Through Hole
Package 3-SIP
Case / Package NS-B1
Family Name 2SD1450
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.21.0075
Other Part Number 2SD14500SACT, 2SD1450SCT, 2SD14500SATB, 2SD1450-S(TA), 2SD14500SATB-NDR, 2SD1450STB, 2SD1450SCT-ND, 2SD1450STA, 2SD14500SACT-NDR, 2SD1450STB-ND
Quantity per package 5000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 906384-2SD14500SA
Ultra Librarian 3D Model Ultra Librarian 2SD14500SA CAD Model

Description

Panasonic's 2SD1450 bipolar (BJT) transistor is an NPN type with a maximum voltage of 20V and a maximum current of 500mA.

  • Voltage: 20V
  • Current: 500mA
  • Maximum Frequency: 200MHz
  • Maximum Power: 300mW
  • Package: Through-hole 3-SIP
  • Operating Temperature Range: Up to 150 degrees Celsius
  • Family Name: 2SD1450
  • Category: Discrete semiconductor products
  • ECCN: EAR99
  • Popularity Rating: High
  • Supply and Demand Status: Balance
  • Quantity per Package: 5,000 pieces
  • HTSUS Code: 8541.21.0075
