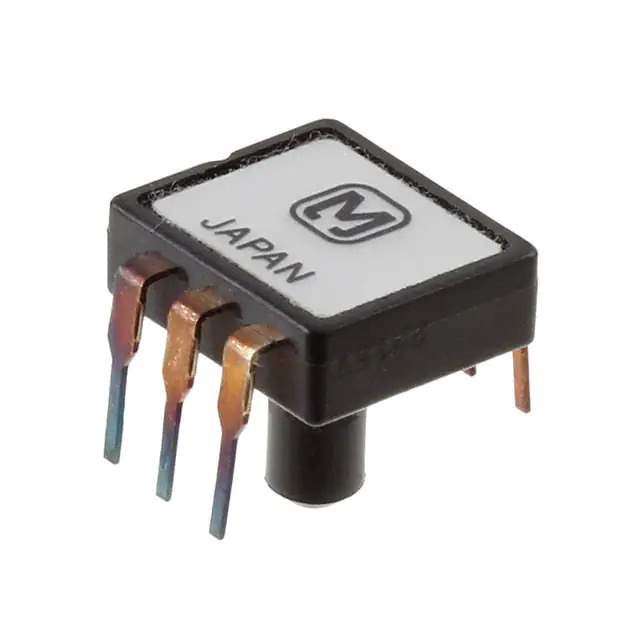

ADP1271 Real Image
Same model may have multiple batches, images only for reference.

ADP1271

Part No ADP1271
Manufacturer Panasonic
Catalog Pressure Sensors, Transducers
Description SENSOR 71.11PSIG 0.12" 0.1V / Pressure Sensor 71.11PSI (490.3kPa) Vented Gauge Male - 0.12" (3mm) Tube 0 mV ~ 100 mV 6-DIP Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Pressure Sensors, Transducers
Mfr Panasonic
Series PF
Package Box
Product Status Active
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 71.11PSI (490.3kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 100 mV
Accuracy ±0.5%
Voltage - Supply 5V
Port Size Male - 0.12" (3mm) Tube
Port Style Barbless
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure 142.22PSI (980.57kPa)
Temperature Range - Operating -20°C ~ 100°C
Mounting Type Through Hole
Package / Case 6-DIP Module
Base Product Number ADP127
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 910606-ADP1271
Ultra Librarian 3D Model Ultra Librarian ADP1271 CAD Model

Description

The 910606-ADP1271 is a pressure sensor from Panasonic's PF series.

  • Output Type: Temperature-compensated
  • Output Range: 0 mV to 100 mV
  • Accuracy: ±0.5%
  • Voltage Supply: 5V
  • Pressure Type: Vented gauge
  • Operating Pressure: 71.11PSI
  • Maximum Pressure: 142.22PSI
  • Port Size: Male 0.12" (3mm) tube
  • Port Style: Barbless
  • Mounting Type: Through-hole
  • Package: 6-DIP module
  • Application: Board mount
  • Operating Temperature: -20°C to 100°C
