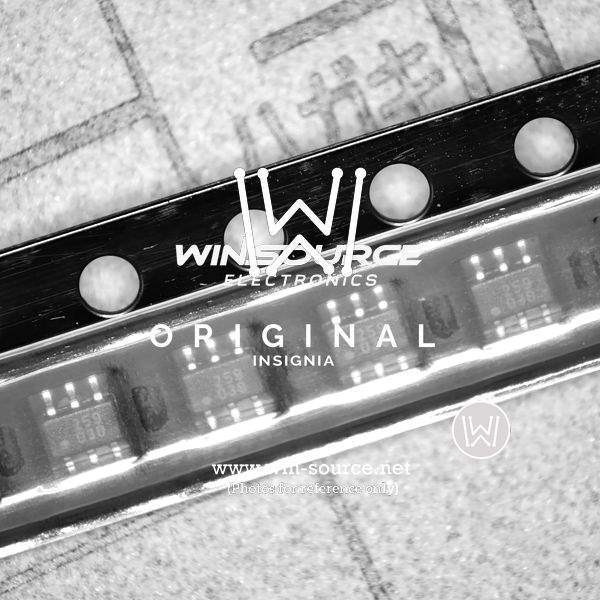

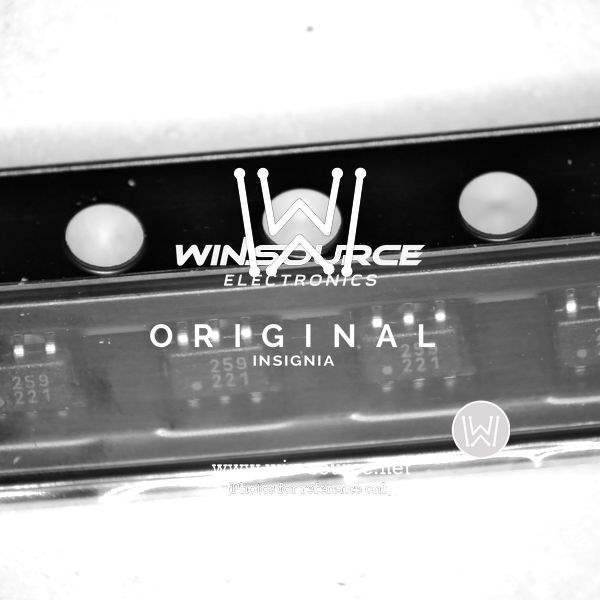

4259-63

Part No 4259-63
Manufacturer Peregrine Semiconductor
Catalog RF Switches
Description IC RF SWITCH SPDT 50 OHM SC70-6
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Peregrine Semiconductor
Packaging Reel - TR
Status Active
Frequency - Lower 10MHz
Frequency - Upper 3GHz
Isolation @ Frequency 20dB @ 2GHz (typ)
Insertion Loss @ Frequency 0.5dB @ 2GHz
IIP3 55dBm (typ)
Topology Reflective
Circuit SPDT
P1dB 29dBm (typ) IP1dB
Features Single/Dual Line Control
Impedance 50 Ohm
Temperature Range - Operating -40°C to 85°C
Supply Voltage - Operating 1.8 V to 3.3 V
RF Type General Purpose

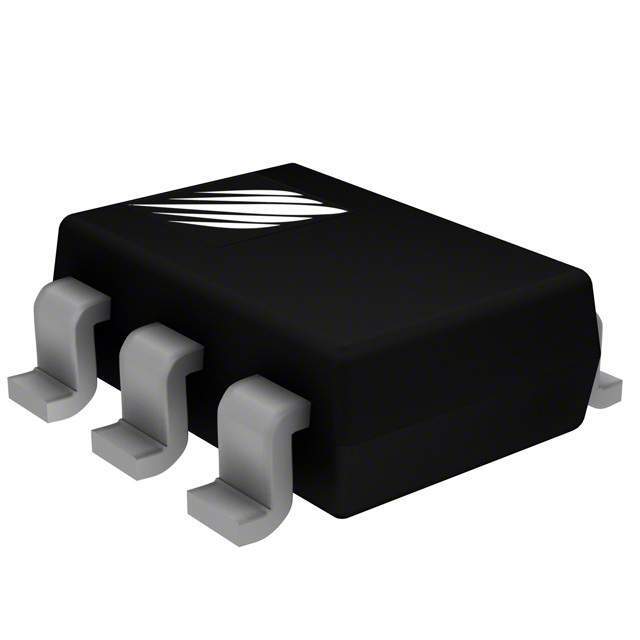

Case / Package SC-70-6
Win Source Part Number 006215-4259-63
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 4259-63 CAD Model

Description

Product Overview

The 4259-63 offers exceptional stability and performance in demanding electronic applications. Known for its robustness and adaptability, it serves as a reliable component that ensures the smooth operation of electronic systems.

Key Features and Benefits

  • Exceptional Stability: Maintains consistent performance under varying loads.
  • Durable Construction: Engineered to last, reducing the need for frequent replacements.
  • Versatile Use: Compatible with a broad range of electronics applications.
  • Cost-Effective: Provides superior performance at a competitive price.

Applications

  • Home Automation
  • Automotive Electronics
  • Power Management Systems
  • Robotics

With state-of-the-art engineering and superior materials, the 4259-63 is an integral component in enhancing the capabilities of your electronic projects.
