Same model may have multiple batches, images only for reference.

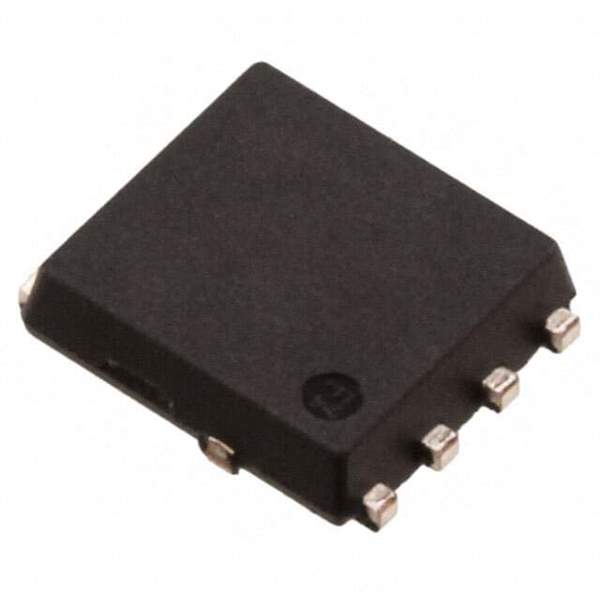

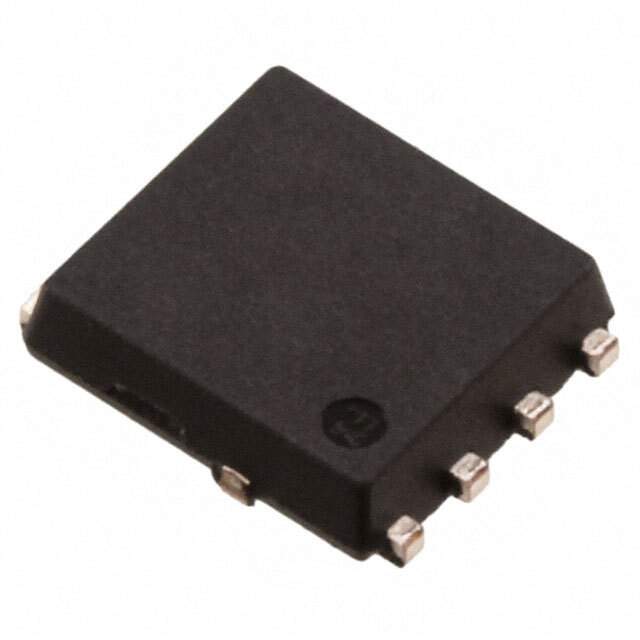

NP75N04YUG-E1-AY Real Image
Same model may have multiple batches, images only for reference.

NP75N04YUG-E1-AY

Part No NP75N04YUG-E1-AY
Manufacturer Renesas Electronics America
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 40V 75A 8HSON
Datasheet
NP75N04YUG-E1-AY Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Renesas Electronics America
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 40V
Continuous Drain Current at 25°C 75A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 4V @ 250μA
Max Gate Charge 116nC @ 10V
Max Input Capacitance 6450pF @ 25V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 1W (Ta), 138W (Tc)
Maximum Rds On at Id,Vgs 4.8 mOhm @ 37.5A, 10V
Temperature Range - Operating 175°C (TJ)
Mounting SMD (SMT)
Case / Package 8-HSON
Dimension 8-SMD, Flat Lead Exposed Pad
Win Source Part Number 1083346-NP75N04YUG-E1-AY
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian NP75N04YUG-E1-AY CAD Model

Description

The NP75N04YUG-E1-AY is an N-Channel MOSFET designed to meet the needs of a wide range of applications.

  • Drain-Source Breakdown Voltage: 40V
  • Continuous Drain Current (at 25°C): 75A (Tc)
  • Rds On (Max) at Id,Vgs: 4.8 mOhm @ 37.5A, 10V
  • Package: 8-HSON
  • Lead: Flat Lead Exposed Pad
  • Supply and Demand: Sufficient
