Same model may have multiple batches, images only for reference.

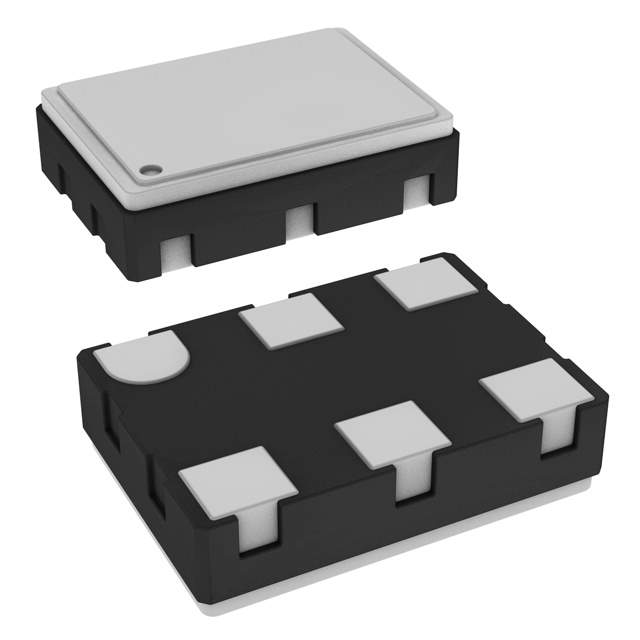

NBXSBA010LNHTAG Real Image
Same model may have multiple batches, images only for reference.

NBXSBA010LNHTAG

Part No NBXSBA010LNHTAG
Manufacturer Rochester Electronics
Catalog Clock/Timing - Programmable Timers and Oscillators
Description LVPECL OUTPUT CLOCK OSCILLATOR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Features Oscillator, Crystal IC 100MHz 6-CLCC (7x5)
Manufacturer ON Semiconductor
Series PureEdge™
Package Bulk
Part Status Obsolete
Operating Temperature Range -40°C ~ 85°C
Mounting Surface Mount
Package 6-CLCC
Case / Package 6-CLCC (7x5)
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number 2156-NBXSBA010LNHTAG-ONTR-ND, 2156-NBXSBA010LNHTAG
Quantity per package 100
Popularity High
Supply and Demand Status Balance
Win Source Part Number 928754-NBXSBA010LNHTAG
Ultra Librarian 3D Model Ultra Librarian NBXSBA010LNHTAG CAD Model

Description

This ON Semiconductor crystal IC is a part of the PureEdge™ series, featuring an oscillator and a crystal. It is designed for surface mount installation and has a 6-CLCC package.

  • Operating Temperature: -40°C to 85°C
  • Quantity per Package: 100 pieces
  • Category: Integrated Circuits (ICs)
  • ECCN: EAR99
  • HTSUS: 8542.39.0001
