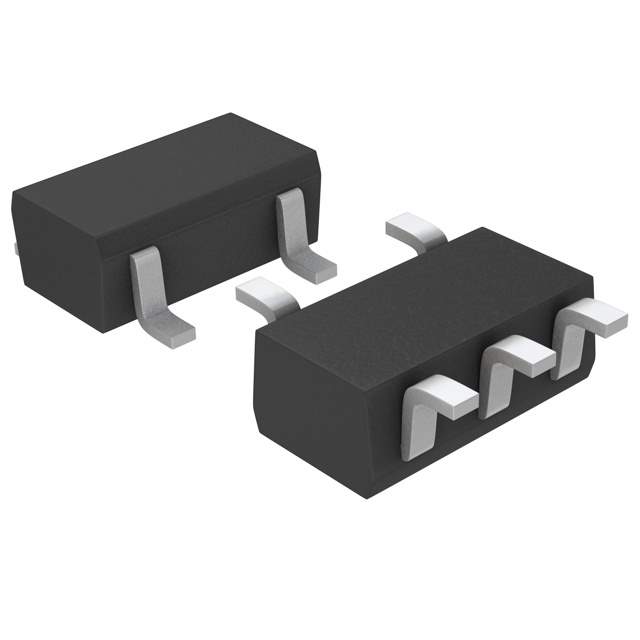

The FMG5 T148 is a digital transistor array (also known as a bias resistor transistor array or BRTA) manufactured by Rohm Semiconductor. These arrays integrate multiple bipolar junction transistors (BJTs) with built-in bias resistors into a single package, simplifying circuit design and reducing the number of external components required.

Applications

• Digital Circuits: Driving digital logic gates, microcontrollers, and other digital ICs.
• Switching Applications: Used as a general-purpose switch for controlling LEDs, relays, and other low-power devices.
• Inverter Circuits: Can be used in simple inverter circuits.
• Level Shifting: Interface between different voltage levels.
• Load Driver: Drive small loads directly from a digital output.

Features

• Built-in Bias Resistors: Simplifies circuit design and reduces the number of external components.
• NPN Transistors Array: Contains multiple NPN BJTs.
• Input Resistor (R1): Typically around 4.7 kΩ.
• Base-Emitter Resistor (R2): Typically around 47 kΩ.
• Surface Mount Package: Available in small surface mount packages like SOT-363.

Benefits

• Reduced Component Count: Integration of bias resistors reduces the need for external resistors, saving board space and cost.
• Simplified Circuit Design: Eliminates the need to calculate and select appropriate bias resistors.
• Improved Reliability: Fewer external components result in fewer potential failure points.
• Easy to Use: Simplified design makes it easier to implement in various applications.
• Compact Size: Small surface mount package allows for high-density designs.

Additional Details

The FMG5 T148 typically features an input resistor (R1) of approximately 4.7 kΩ and a base-emitter resistor (R2) of approximately 47 kΩ. This configuration provides a defined input impedance and ensures that the transistors are properly biased when a signal is applied to the input. The integrated resistors are precisely matched to optimize performance and reduce variations. This component is usually housed in a small SOT-363 or similar surface-mount package for ease of assembly. Check the datasheet for specific voltage and current ratings, as well as the exact resistor values.

When using the FMG5 T148, the input signal is applied to the base through the input resistor (R1). The base-emitter resistor (R2) ensures that the transistor is turned off when the input signal is low. When the input signal is high enough, the transistor turns on, allowing current to flow from the collector to the emitter. This functionality makes it suitable for a variety of switching and amplification applications in digital circuits, where multiple transistors are required.
