The Rohm Semiconductor SCT3017ALHRC11 is an N-channel SiCFET (Silicon Carbide) transistor that is part of the Automotive AEC-Q101 series.

• Drain to Source Voltage (Vdss): 650V
• Continuous Drain Current (Id): 118A @ 25°C
• Rds On (Max) @ Id, Vgs: 22.1mOhm @ 47A, 18V
• Vgs(th) (Max) @ Id: 5.6V @ 23.5mA
• Power Dissipation (Max): 427W
• Gate Charge (Qg) (Max) @ Vgs: 172 nC @ 18 V
• Input Capacitance (Ciss) (Max) @ Vds: 2884 pF @ 500 V
• Gate-Source Voltage (Vgs) range: +22V, -4V
• Temperature Range: 175°C (TJ)

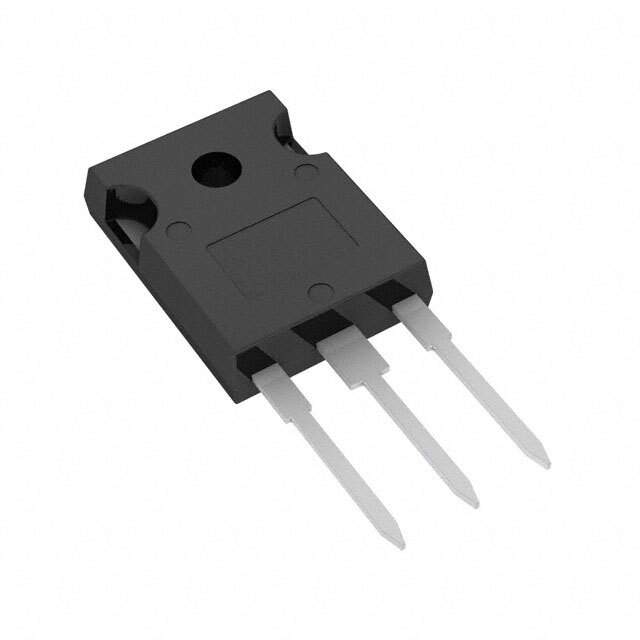

• Package Type: Through-hole TO-247-3
