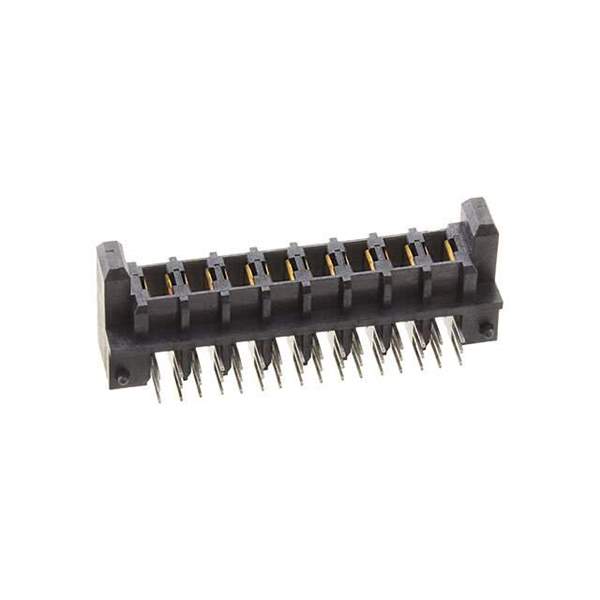

UPS-08-01-01-L-RA Real Image
Same model may have multiple batches, images only for reference.

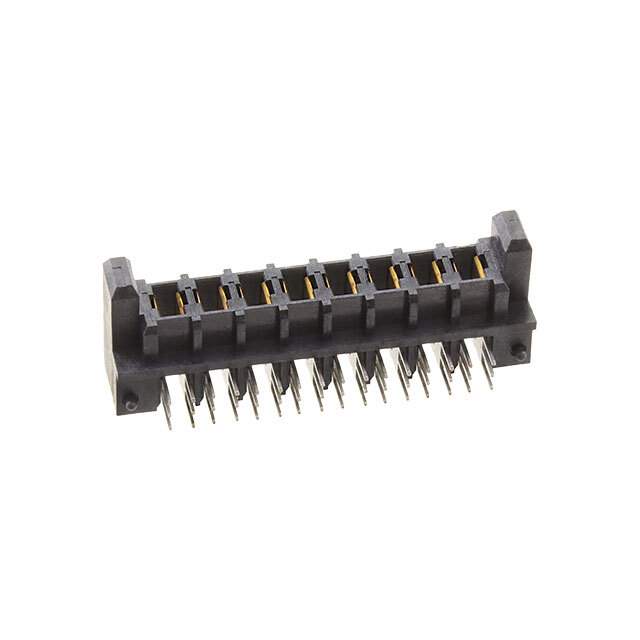

UPS-08-01-01-L-RA

Part No UPS-08-01-01-L-RA
Manufacturer Samtec Inc.
Catalog Blade Type Power Connectors
Description .150" POWERSTRIP/20 A DUAL BLAD / 8 Position Receptacle, Female Blade Sockets Connector Solder 0.150" (3.81mm) Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Blade Type Power Connectors - Blade Type Power Connector Assemblies
Mfr Samtec Inc.
Series PowerStrip™ 20 UPS
Package Tube
Connector Type Receptacle, Female Blade Sockets
Number of Positions 8
Pitch 0.150" (3.81mm)
Mounting Type Through Hole, Right Angle
Number of Rows 1
Termination Solder
Features Board Guide
Color Black
Contact Material Beryllium Copper
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Voltage Rating 620 V
Current Rating (Amps) 20 A
Material - Insulation Liquid Crystal Polymer (LCP)
Temperature Range - Operating -55°C ~ 125°C
Base Product Number UPS-08
Standard Package 15
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 1338372-UPS-08-01-01-L-RA
Ultra Librarian 3D Model Ultra Librarian UPS-08-01-01-L-RA CAD Model

Description

The UPS-08-01-01-L-RA is a blade type power connector assembly from Samtec Inc.

  • Manufacturer: Samtec Inc.
  • Product: UPS-08-01-01-L-RA
  • Type: Blade Type Power Connector Assembly
  • Series: PowerStrip™ 20 UPS
  • Positions: 8
  • Pitch: 0.150" (3.81mm)
  • Color: Black
  • Features: Board Guide
  • Connector Gender: Receptacle
  • Blade Sockets: Female
  • Rows: One
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 10.0µin (0.25µm)
  • Package: Tube
  • Wire Gauge: Not Specified
  • Contact Material: Beryllium Copper
  • Voltage Rating: 620V
  • Material Insulation: Liquid Crystal Polymer (LCP)
  • Mounting Type: Through Hole, Right Angle
  • Temperature Range: -55°C to 125°C
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • Current Rating: 20A
  • REACH Status: REACH Unaffected
  • HTSUS: 8536.69.4040
  • Base Product Number: UPS-08
  • Compliance: California Prop 65
